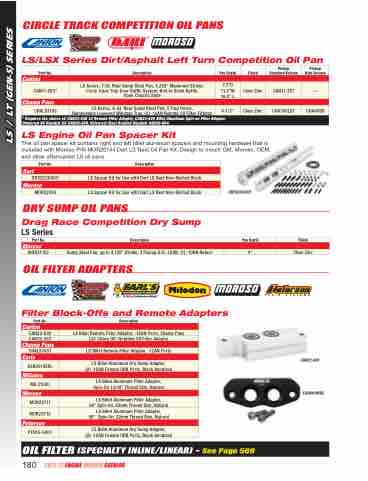

Page 182 - 2021-22_EngineCatalogAP

CIRCLE TRACK COMPETITION OIL PANS
LS/LSX Series Dirt/Asphalt Left Turn Competition Oil Pan
Part No.
Canton
CAN11-280 B
Champ Pans
CHALS1100
Description
LS Series, 7-Qt. Rear Sump Steel Pan, 4.250" Maximum Stroke, Circle Track Trap Door Baffle System, Bolt-In Slosh Baffle, Open Chassis Style
LS Series, 6-Qt. Rear Sump Steel Pan, 5 Trap Doors, Removeable Louvered Windage Tray, (2) -10AN Remote Oil Filter Fittings
Pan Depth
7.0"D 11.0"W 16.0" L
4-1/2"
Finish
Clear Zinc
Clear Zinc
Pickup Standard Volume
CAN11-281
CHA700LS1
Pickup High Volume
—
CHA40SB
B Requires the choice of: CAN22-630 LS Remote Filter Adapter, CAN22-620 Billet Aluminum Spin-on Filter Adapter. Universal Oil Dipstick Kit CAN20-850, Universal Steel Braided Dipstick CAN20-854.
LS Engine Oil Pan Spacer Kit
This oil pan spacer kit contains right and left billet aluminum spacers and mounting hardware that is included with Moroso P/N MOR20144 Dart LS Next Oil Pan Kit. Design to mount GM, Moroso, OEM, and other aftermarket LS oil pans.
LS / LT (GEN-5) SERIES
Dart
Part No.
Description
LS Spacer Kit for Use with Dart LS Next Non-Skirted Block LS Spacer Kit for Use with Dart LS Next Non-Skirted Block
DRT62230001
Moroso
MOR22934
DRT62230001
Pan Depth
4"
DRY SUMP OIL PANS
Drag Race Competition Dry Sump
LS Series
Part No. Description
Moroso
MOR21155 Sump Steel Pan, up to 4.125" Stroke, 3 Pickup D/S -12AN, (1) -10AN Return
OIL FILTER ADAPTERS
Filter Block-Offs and Remote Adapters
Finish
Part No.
Canton
CAN22-630
CAN22-593
Champ Pans
CHALS1001
Earls
EAR0019ERL
Milodon
MIL21580
Moroso
MOR23711
MOR23712
Peterson
PTR15-5001
Description
LS Billet Remote Filter Adapter, -12AN Ports, Champ Pans LS1 Chevy 90° Rotating Oil Filter Adapter
LS Billet Remote Filter Adapter, -12AN Ports
LS Billet Aluminum Dry Sump Adapter, (2) -12AN Female ORB Ports, Black Anodized
LS Billet Aluminum Filter Adapter, Spin-On 13/16" Thread Size, Natural
LS Billet Aluminum Filter Adapter, 90° Spin-On, 22mm Thread Size, Natural LS Billet Aluminum Filter Adapter, 90° Spin-On, 22mm Thread Size, Natural
LS Billet Aluminum Dry Sump Adapter, (2) -12AN Female ORB Ports, Black Anodized
CAN22-630
EAR0019ERL
OIL FILTER (SPECIALTY INLINE/LINEAR) - See Page 569 180 2021-22 ENGINE BUILDER CATALOG
Clear Zinc
