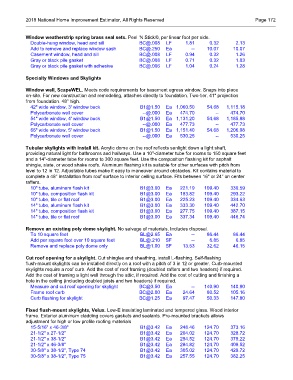

Page 213 - 2018 National Home Improvement

2018 National Home Improvement Estimator, All Rights Reserved Page 172

Window weatherstrip spring brass seal sets. Peel ‘N Stick®, per linear foot per side.
Double-hung window, head and sill BC@.008 LF 1.81 0.32 2.13
Add to remove and replace window sash BC@.250 Ea -- 10.07 10.07
Casement window, head and sill BC@.008 LF 0.94 0.32 1.26
Gray or black pile gasket BC@.008 LF 0.71 0.32 1.03
Gray or black pile gasket with adhesive BC@.006 LF 1.04 0.24 1.28

Specialty Windows and Skylights

Window well, ScapeWEL. Meets code requirements for basement egress window. Snaps into place
on-site. For new construction and remodeling, attaches directly to foundation. Two-tier. 41" projection
from foundation. 48" high.
42" wide window, 3' window buck B1@1.50 Ea 1,060.50 54.68 1,115.18
Polycarbonate well cover --@.000 Ea 474.70 -- 474.70
54" wide window, 4' window buck B1@1.50 Ea 1,131.20 54.68 1,185.88
Polycarbonate well cover --@.000 Ea 477.73 -- 477.73
66" wide window, 5' window buck B1@1.50 Ea 1,151.40 54.68 1,206.08
Polycarbonate well cover --@.000 Ea 530.25 -- 530.25

Tubular skylights with install kit. Acrylic dome on the roof reflects sunlight down a light shaft,
providing natural light for bathrooms and hallways. Use a 10"-diameter tube for rooms to 150 square feet
and a 14"-diameter tube for rooms to 300 square feet. Use the composition flashing kit for asphalt
shingle, slate, or wood shake roofs. Aluminum flashing kit is suitable for other surfaces with pitch from
level to 12 in 12. Adjustable tubes make it easy to maneuver around obstacles. Kit contains material to
complete a 48" installation from roof surface to interior ceiling surface. Fits between 16" or 24" on center
rafters.
10" tube, aluminum flash kit B1@3.00 Ea 221.19 109.40 330.59
10" tube, composition flash kit B1@3.00 Ea 183.82 109.40 293.22
10" tube, tile or flat roof B1@3.00 Ea 225.23 109.40 334.63
14" tube, aluminum flash kit B1@3.00 Ea 333.30 109.40 442.70
14" tube, composition flash kit B1@3.00 Ea 277.75 109.40 387.15
14" tube, tile or flat roof B1@3.00 Ea 337.34 109.40 446.74

Remove an existing poly dome skylight. No salvage of materials. Includes disposal.
To 10 square feet BL@2.65 Ea -- 86.44 86.44
Add per square foot over 10 square feet BL@.210 SF -- 6.85 6.85
Remove and replace poly dome only BL@1.00 SF 13.53 32.62 46.15

Cut roof opening for a skylight. Cut shingles and sheathing, install L-flashing. Self-flashing
flush-mount skylights can be installed directly on a roof with a pitch of 3 in 12 or greater. Curb-mounted
skylights require a roof curb. Add the cost of roof framing (doubled rafters and two headers) if required.
Add the cost of framing a light well through the attic, if required. Add the cost of cutting and finishing a
hole in the ceiling (including doubled joists and two headers) if required.
Measure and cut roof opening for skylight BC@3.50 Ea -- 140.90 140.90
Frame roof curb BC@2.00 Ea 24.64 80.52 105.16
Curb flashing for skylight BC@1.25 Ea 97.47 50.33 147.80

Fixed flush-mount skylights, Velux. Low-E insulating laminated and tempered glass. Wood interior
frame. Exterior aluminum cladding covers gaskets and sealants. Pre-mounted brackets allows
adjustment for high or low profile roofing materials
15-5/16" x 46-3/8" B1@3.42 Ea 248.46 124.70 373.16
21-1/2" x 27-1/2" B1@3.42 Ea 204.02 124.70 328.72
21-1/2" x 38-1/2" B1@3.42 Ea 254.52 124.70 379.22
21-1/2" x 46-3/8" B1@3.42 Ea 284.82 124.70 409.52
30-5/8" x 38-1/2", Type 74 B1@3.42 Ea 305.02 124.70 429.72
30-5/8" x 38-1/2", Type 75 B1@3.42 Ea 257.55 124.70 382.25
