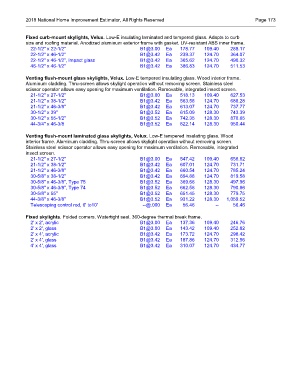

2018 National Home Improvement Estimator, All Rights Reserved Page 173

Fixed curb-mount skylights, Velux. Low-E insulating laminated and tempered glass. Adapts to curb
size and roofing material. Anodized aluminum exterior frame with gasket. UV-resistant ABS inner frame.
22-1/2" x 22-1/2" B1@3.00 Ea 178.77 109.40 288.17
22-1/2" x 46-1/2" B1@3.42 Ea 239.37 124.70 364.07
22-1/2" x 46-1/2", impact glass B1@3.42 Ea 365.62 124.70 490.32
46-1/2" x 46-1/2" B1@3.42 Ea 386.83 124.70 511.53

Venting flush-mount glass skylights, Velux. Low-E tempered insulating glass. Wood interior frame.
Aluminum cladding. Thru-screen allows skylight operation without removing screen. Stainless steel
scissor operator allows easy opening for maximum ventilation. Removable, integrated insect screen.
21-1/2" x 27-1/2" B1@3.00 Ea 518.13 109.40 627.53
21-1/2" x 38-1/2" B1@3.42 Ea 563.58 124.70 688.28
21-1/2" x 46-3/8" B1@3.42 Ea 613.07 124.70 737.77
30-1/2" x 39" B1@3.52 Ea 615.09 128.30 743.39
30-1/2" x 55-1/2" B1@3.52 Ea 742.35 128.30 870.65
44-3/4" x 46-3/8 B1@3.52 Ea 822.14 128.30 950.44

Venting flush-mount laminated glass skylights, Velux. Low-E tempered insulating glass. Wood
interior frame. Aluminum cladding. Thru-screen allows skylight operation without removing screen.
Stainless steel scissor operator allows easy opening for maximum ventilation. Removable, integrated
insect screen.
21-1/2" x 27-1/2" B1@3.00 Ea 547.42 109.40 656.82
21-1/2" x 38-1/2" B1@3.42 Ea 607.01 124.70 731.71
21-1/2" x 46-3/8" B1@3.42 Ea 660.54 124.70 785.24
30-5/8" x 38-1/2" B1@3.42 Ea 694.88 124.70 819.58
30-5/8" x 46-3/8", Type 75 B1@3.52 Ea 369.66 128.30 497.96
30-5/8" x 46-3/8", Type 74 B1@3.52 Ea 662.56 128.30 790.86
30-5/8" x 55" B1@3.52 Ea 651.45 128.30 779.75
44-3/8" x 46-3/8" B1@3.52 Ea 931.22 128.30 1,059.52
Telescoping control rod, 6' to10' --@.000 Ea 56.46 -- 56.46

Fixed skylights. Folded corners. Watertight seal. 360-degree thermal break frame.
2' x 2', acrylic B1@3.00 Ea 137.36 109.40 246.76
2' x 2', glass B1@3.00 Ea 143.42 109.40 252.82
2' x 4', acrylic B1@3.42 Ea 173.72 124.70 298.42
2' x 4', glass B1@3.42 Ea 187.86 124.70 312.56
4' x 4', glass B1@3.42 Ea 310.07 124.70 434.77
