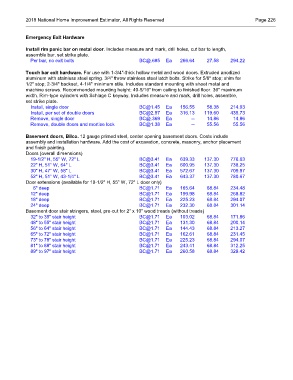

Page 280 - 2018 National Home Improvement

2018 National Home Improvement Estimator, All Rights Reserved Page 226

Emergency Exit Hardware

Install rim panic bar on metal door. Includes measure and mark, drill holes, cut bar to length,
assemble bar, set strike plate.
Per bar, no exit bolts BC@.685 Ea 266.64 27.58 294.22

Touch bar exit hardware. For use with 1-3/4"-thick hollow metal and wood doors. Extruded anodized
aluminum with stainless steel spring. 3/4" throw stainless steel latch bolts. Strike for 5/8" stop; shim for
1/2" stop; 2-3/4" backset, 4-1/4" minimum stile. Includes standard mounting with sheet metal and
machine screws. Recommended mounting height: 40-5/16" from ceiling to finished floor. 36" maximum
width. Rim-type cylinders with Schlage C keyway. Includes measure and mark, drill holes, assemble,
set strike plate.
Install, single door BC@1.45 Ea 156.55 58.38 214.93
Install, per set of double doors BC@2.97 Ea 316.13 119.60 435.73
Remove, single door BC@.369 Ea -- 14.86 14.86
Remove, double doors and mortise lock BC@1.38 Ea -- 55.56 55.56

Basement doors, Bilco. 12 gauge primed steel, center opening basement doors. Costs include
assembly and installation hardware. Add the cost of excavation, concrete, masonry, anchor placement
and finish painting.
Doors (overall dimensions)
19-1/2" H, 55" W, 72" L BC@3.41 Ea 639.33 137.30 776.63
22" H, 51" W, 64" L BC@3.41 Ea 600.95 137.30 738.25
30" H, 47" W, 58" L BC@3.41 Ea 572.67 137.30 709.97
52" H, 51" W, 43-1/4" L BC@3.41 Ea 643.37 137.30 780.67
Door extensions (available for 19-1/2" H, 55" W, 72" L door only)
6" deep BC@1.71 Ea 165.64 68.84 234.48
12" deep BC@1.71 Ea 199.98 68.84 268.82
18" deep BC@1.71 Ea 225.23 68.84 294.07
24" deep BC@1.71 Ea 232.30 68.84 301.14
Basement door stair stringers, steel, pre-cut for 2" x 10" wood treads (without treads)
32" to 39" stair height BC@1.71 Ea 103.02 68.84 171.86
48" to 55" stair height BC@1.71 Ea 131.30 68.84 200.14
56" to 64" stair height BC@1.71 Ea 144.43 68.84 213.27
65" to 72" stair height BC@1.71 Ea 162.61 68.84 231.45
73" to 78" stair height BC@1.71 Ea 225.23 68.84 294.07
81" to 88" stair height BC@1.71 Ea 243.41 68.84 312.25
89" to 97" stair height BC@1.71 Ea 260.58 68.84 329.42
