Page 428 - 2018 National Home Improvement

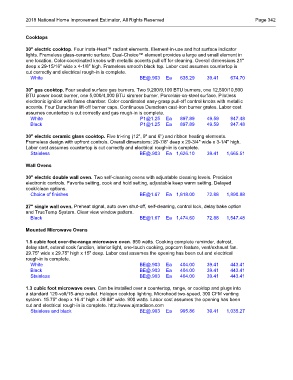

2018 National Home Improvement Estimator, All Rights Reserved Page 342

Cooktops

30" electric cooktop. Four Insta-Heat™ radiant elements. Element-in-use and hot surface indicator
lights. Frameless glass-ceramic surface. Dual-Choice™ element provides a large and small element in
one location. Color-coordinated knobs with metallic accents pull off for cleaning. Overall dimensions 21"
deep x 29-15/16" wide x 4-1/8" high. Frameless smooth black top. Labor cost assumes countertop is
cut correctly and electrical rough-in is complete.
White BE@.903 Ea 635.29 39.41 674.70

30" gas cooktop. Four sealed surface gas burners. Two 9,200/9,100 BTU burners, one 12,500/10,500
BTU power boost burner, one 5,000/4,000 BTU simmer burner. Porcelain-on-steel surface. Pilotless
electronic ignition with flame chamber. Color coordinated easy-grasp pull-off control knobs with metallic
accents. Four Duraclean lift-off burner caps. Continuous Duraclean cast-iron burner grates. Labor cost
assumes countertop is cut correctly and gas rough-in is complete.
White P1@1.25 Ea 897.89 49.59 947.48
Black P1@1.25 Ea 897.89 49.59 947.48

30" electric ceramic glass cooktop. Five tri-ring (12", 9" and 6") and ribbon heating elements.
Frameless design with upfront controls. Overall dimensions: 20-7/8" deep x 29-3/4" wide x 3-1/4" high.
Labor cost assumes countertop is cut correctly and electrical rough-in is complete.
Stainless BE@.903 Ea 1,626.10 39.41 1,665.51

Wall Ovens

30" electric double wall oven. Two self-cleaning ovens with adjustable cleaning levels. Precision
electronic controls. Favorite setting, cook and hold setting, adjustable keep warm setting. Delayed
cook/clean options.
Choice of finishes BE@1.67 Ea 1,818.00 72.88 1,890.88

27" single wall oven. Preheat signal, auto oven shut-off, self-cleaning, control lock, delay bake option
and TrueTemp System. Clear view window pattern.
Black BE@1.67 Ea 1,474.60 72.88 1,547.48

Mounted Microwave Ovens

1.5 cubic foot over-the-range microwave oven. 950 watts. Cooking complete reminder, defrost,
delay start, extend cook function, interior light, one-touch cooking, popcorn feature, vent/exhaust fan.
29.75" wide x 29.75" high x 15" deep. Labor cost assumes the opening has been cut and electrical
rough-in is complete.
White BE@.903 Ea 404.00 39.41 443.41
Black BE@.903 Ea 404.00 39.41 443.41
Stainless BE@.903 Ea 404.00 39.41 443.41

1.3 cubic foot microwave oven. Can be installed over a countertop, range, or cooktop and plugs into
a standard 120-volt/15-amp outlet. Halogen cooktop lighting. Microhood two-speed, 300 CFM venting
system. 15.75" deep x 16.4" high x 29.88" wide. 900 watts. Labor cost assumes the opening has been
cut and electrical rough-in is complete. http://www.ajmadison.com
Stainless and black BE@.903 Ea 995.86 39.41 1,035.27
