Page 431 - 2018 National Home Improvement

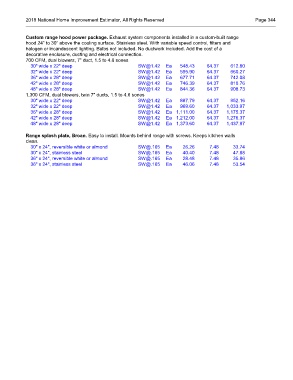

2018 National Home Improvement Estimator, All Rights Reserved Page 344

Custom range hood power package. Exhaust system components installed in a custom-built range
hood 24" to 30" above the cooling surface. Stainless steel. With variable speed control, filters and
halogen or incandescent lighting. Bulbs not included. No ductwork included. Add the cost of a
decorative enclosure, ducting and electrical connection.
700 CFM, dual blowers, 7" duct, 1.5 to 4.6 sones
30" wide x 22" deep SW@1.42 Ea 548.43 64.37 612.80
32" wide x 22" deep SW@1.42 Ea 595.90 64.37 660.27
36" wide x 28" deep SW@1.42 Ea 677.71 64.37 742.08
42" wide x 28" deep SW@1.42 Ea 746.39 64.37 810.76
48" wide x 28" deep SW@1.42 Ea 844.36 64.37 908.73
1,300 CFM, dual blowers, twin 7" ducts, 1.5 to 4.6 sones
30" wide x 22" deep SW@1.42 Ea 887.79 64.37 952.16
32" wide x 22" deep SW@1.42 Ea 969.60 64.37 1,033.97
36" wide x 28" deep SW@1.42 Ea 1,111.00 64.37 1,175.37
42" wide x 28" deep SW@1.42 Ea 1,212.00 64.37 1,276.37
48" wide x 28" deep SW@1.42 Ea 1,373.60 64.37 1,437.97

Range splash plate, Broan. Easy to install. Mounts behind range with screws. Keeps kitchen walls
clean.
30" x 24", reversible white or almond SW@.165 Ea 26.26 7.48 33.74
30" x 24", stainless steel SW@.165 Ea 40.40 7.48 47.88
36" x 24", reversible white or almond SW@.165 Ea 28.48 7.48 35.96
36" x 24", stainless steel SW@.165 Ea 46.06 7.48 53.54
