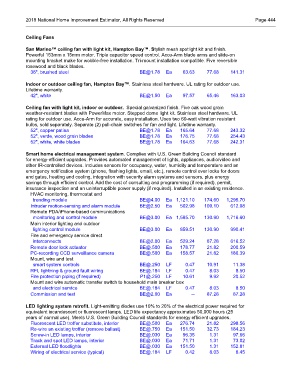

Page 562 - 2018 National Home Improvement

2018 National Home Improvement Estimator, All Rights Reserved Page 444

Ceiling Fans

San Marino™ ceiling fan with light kit, Hampton Bay™. Stylish mesh spotlight kit and finish.
Powerful 153mm x 15mm motor. Triple capacitor speed control. Accu-Arm blade arms and slide-on
mounting bracket make for wobble-free installation. Tri-mount installation compatible. Five reversible
rosewood and black blades.
36", brushed steel BE@1.78 Ea 63.63 77.68 141.31

Indoor or outdoor ceiling fan, Hampton Bay™. Stainless steel hardware. UL rating for outdoor use.
Lifetime warranty.
42", white BE@1.50 Ea 97.57 65.46 163.03

Ceiling fan with light kit, indoor or outdoor. Special galvanized finish. Five oak wood grain
weather-resistant blades with PowerMax motor. Stepped dome light kit. Stainless steel hardware. UL
rating for outdoor use. Accu-Arm for accurate, easy installation. Uses two 60-watt vibration resistant
bulbs, sold separately. Separate (2) pull-chain switches for fan and light. Lifetime warranty.
52", copper patina BE@1.78 Ea 165.64 77.68 243.32
52", verde, wood grain blades BE@1.78 Ea 176.75 77.68 254.43
52", white, white blades BE@1.78 Ea 164.63 77.68 242.31

Smart home electrical management system. Complies with U.S. Green Building Council standard
for energy-efficient upgrades. Provides automated management of lights, appliances, audio/video and
other IR-controlled devices. Includes sensors for occupancy, water, humidity and temperature and an
emergency notification system (phone, flashing lights, email, etc.), remote control over locks for doors
and gates, heating and cooling, integration with security alarm systems and sensors, plus energy
savings through efficient control. Add the cost of consulting and programming (if required), permit,
insurance inspection and an uninterruptible power supply (if required). Installed in an existing residence.
HVAC monitoring, thermostat and
trending module BE@4.00 Ea 1,121.10 174.60 1,295.70
Intruder motion-sensing and alarm module BE@2.50 Ea 502.98 109.10 612.08
Remote PDA/iPhone-based communications
monitoring and control module BE@3.00 Ea 1,585.70 130.90 1,716.60
Main interior lighting and outdoor
lighting control module BE@3.00 Ea 859.51 130.90 990.41
Fire and emergency service direct
interconnects BE@2.00 Ea 529.24 87.28 616.52
Remote door lock actuator BE@.500 Ea 178.77 21.82 200.59
PC-recording CCD surveillance camera BE@.500 Ea 158.57 21.82 180.39
Mount, wire and test
smart system controls BE@.250 LF 0.47 10.91 11.38
RFI, lightning & ground fault wiring BE@.184 LF 0.47 8.03 8.50
Fire protection piping (if required) P1@.250 LF 10.61 9.92 20.52
Mount and wire automatic transfer switch to household main breaker box
and electrical service BE@.184 LF 0.47 8.03 8.50
Commission and test BE@2.00 Ea -- 87.28 87.28

LED lighting system retrofit. Light-emitting diodes use 10% to 20% of the electrical power required for
equivalent incandescent or fluorescent lamps. LED life expectancy approximates 50,000 hours (25
years of normal use). Meets U.S. Green Building Council standards for energy efficient upgrades.
Fluorescent LED troffer substitute, interior BE@.500 Ea 276.74 21.82 298.56
Re-wire an existing troffer (remove ballast) BE@.750 Ea 151.50 32.73 184.23
Screw-in LED lamps, interior BE@.030 Ea 96.35 1.31 97.66
Track and spot LED lamps, interior BE@.030 Ea 71.71 1.31 73.02
External LED floodlights BE@.030 Ea 151.50 1.31 152.81
Wiring of electrical service (typical) BE@.184 LF 0.42 8.03 8.45
