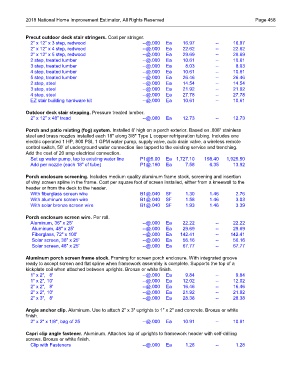

Page 579 - 2018 National Home Improvement

2018 National Home Improvement Estimator, All Rights Reserved Page 458

Precut outdoor deck stair stringers. Cost per stringer.
2" x 12" x 3 step, redwood --@.000 Ea 16.97 -- 16.97
2" x 12" x 4 step, redwood --@.000 Ea 22.62 -- 22.62
2" x 12" x 5 step, redwood --@.000 Ea 29.69 -- 29.69
2 step, treated lumber --@.000 Ea 10.61 -- 10.61
3 step, treated lumber --@.000 Ea 8.03 -- 8.03
4 step, treated lumber --@.000 Ea 10.61 -- 10.61
5 step, treated lumber --@.000 Ea 26.46 -- 26.46
2 step, steel --@.000 Ea 14.54 -- 14.54
3 step, steel --@.000 Ea 21.92 -- 21.92
4 step, steel --@.000 Ea 27.78 -- 27.78
EZ stair building hardware kit --@.000 Ea 10.61 -- 10.61

Outdoor deck stair stepping. Pressure treated lumber.
2" x 12" x 48" tread --@.000 Ea 12.73 -- 12.73

Porch and patio misting (fog) system. Installed 8' high on a porch exterior. Based on .008" stainless
steel and brass nozzles installed each 18" along 3/8" Type L copper refrigeration tubing. Includes one
electric operated 1 HP, 800 PSI, 1 GPM water pump, supply valve, auto drain valve, a wireless remote
control switch, 50' of underground water connection line tapped to the existing service and trenching.
Add the cost of 20 amp electrical connection.
Set up water pump, tap to existing water line P1@5.00 Ea 1,727.10 198.40 1,925.50
Add per nozzle (each 18" of tube) P1@.160 Ea 7.58 6.35 13.92

Porch enclosure screening. Includes medium quality aluminum frame stock, screening and insertion
of vinyl screen spline in the frame. Cost per square foot of screen installed, either from a kneewall to the
header or from the deck to the header.
With fiberglass screen wire B1@.040 SF 1.30 1.46 2.76
With aluminum screen wire B1@.040 SF 1.58 1.46 3.03
With solar bronze screen wire B1@.040 SF 1.93 1.46 3.39

Porch enclosure screen wire. Per roll.
Aluminum, 36" x 25' --@.000 Ea 22.22 -- 22.22
Aluminum, 48" x 25' --@.000 Ea 29.69 -- 29.69
Fiberglass, 72" x 100' --@.000 Ea 142.41 -- 142.41
Solar screen, 36" x 25' --@.000 Ea 56.16 -- 56.16
Solar screen, 48" x 25' --@.000 Ea 67.77 -- 67.77

Aluminum porch screen frame stock. Framing for screen porch enclosure. With integrated groove
ready to accept screen and flat spline when framework assembly is complete. Supports the top of a
kickplate coil when attached between uprights. Bronze or white finish.
1" x 2", 8' --@.000 Ea 9.84 -- 9.84
1" x 2", 10' --@.000 Ea 12.02 -- 12.02
2" x 2", 8' --@.000 Ea 16.46 -- 16.46
2" x 2", 10' --@.000 Ea 21.92 -- 21.92
2" x 3", 8' --@.000 Ea 28.38 -- 28.38

Angle anchor clip. Aluminum. Use to attach 2" x 3" uprights to 1" x 2" and concrete. Bronze or white
finish.
2" x 2" x 1/8", bag of 25 --@.000 Ea 10.91 -- 10.91

Capri clip angle fastener. Aluminum. Attaches top of uprights to framework header with self-drilling
screws. Bronze or white finish.
Clip with Fasteners --@.000 Ea 1.28 -- 1.28
