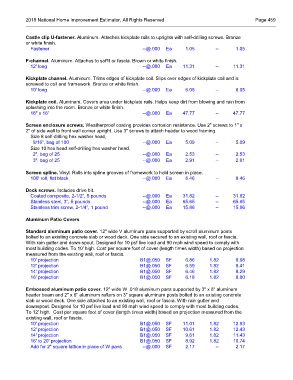

2018 National Home Improvement Estimator, All Rights Reserved Page 459

Castle clip U-fastener. Aluminum. Attaches kickplate rails to uprights with self-drilling screws. Bronze
or white finish.
Fastener --@.000 Ea 1.05 -- 1.05

F-channel. Aluminum. Attaches to soffit or fascia. Brown or white finish.
12' long --@.000 Ea 11.31 -- 11.31

Kickplate channel. Aluminum. Trims edges of kickplate coil. Slips over edges of kickplate coil and is
screwed to coil and framework. Bronze or white finish.
10' long --@.000 Ea 6.05 -- 6.05

Kickplate coil. Aluminum. Covers area under kickplate rails. Helps keep dirt from blowing and rain from
splashing into the room. Bronze or white finish.
16" x 16' --@.000 Ea 47.77 -- 47.77

Screen enclosure screws. Weatherproof coating provides corrosion resistance. Use 2" screws to 1" x
2" of side wall to front wall corner upright. Use 3" screws to attach header to wood framing
Size 8 self-drilling hex washer head,
9/16", bag of 100 --@.000 Ea 5.09 -- 5.09
Size 10 hex head self-drilling hex washer head,
2", bag of 25 --@.000 Ea 2.53 -- 2.53
3", bag of 25 --@.000 Ea 2.91 -- 2.91

Screen spline. Vinyl. Rolls into spline grooves of framework to hold screen in place.
100' roll, flat black --@.000 Ea 8.46 -- 8.46

Deck screws. Includes drive bit.
Coated composite, 2-1/2", 5 pounds --@.000 Ea 31.82 -- 31.82
Stainless steel, 3", 5 pounds --@.000 Ea 65.65 -- 65.65
Stainless trim screw, 2-1/4", 1 pound --@.000 Ea 15.86 -- 15.86

Aluminum Patio Covers

Standard aluminum patio cover. 12" wide V aluminum pans supported by scroll aluminum posts
bolted to an existing concrete slab or wood deck. One side secured to an existing wall, roof or fascia.
With rain gutter and down-spout. Designed for 10 psf live load and 90 mph wind speed to comply with
most building codes. To 10' high. Cost per square foot of cover (length times width) based on projection
measured from the existing wall, roof or fascia.
10' projection B1@.050 SF 6.86 1.82 8.68
12' projection B1@.050 SF 6.59 1.82 8.41
14' projection B1@.050 SF 6.46 1.82 8.29
16' projection B1@.050 SF 6.18 1.82 8.00

Embossed aluminum patio cover. 12" wide W .018 aluminum pans supported by 3" x 8" aluminum
header beam and 2" x 6" aluminum rafters on 3" square aluminum posts bolted to an existing concrete
slab or wood deck. One side attached to an existing wall, roof or fascia. With rain gutter and
downspout. Designed for 10 psf live load and 90 mph wind speed to comply with most building codes.
To 12' high. Cost per square foot of cover (length times width) based on projection measured from the
existing wall, roof or fascia.
10' projection B1@.050 SF 11.01 1.82 12.83
12' projection B1@.050 SF 10.61 1.82 12.43
14' projection B1@.050 SF 9.61 1.82 11.43
16' to 20' projection B1@.050 SF 8.92 1.82 10.74
Add for 2" square lattice in place of W pans --@.000 SF 2.17 -- 2.17
