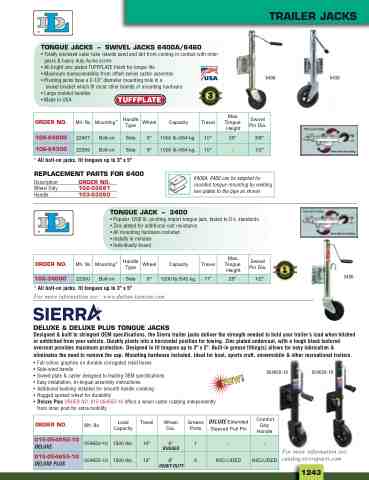

Page 1275 - 2025 Parts & Accessories Catalogue

TRAILER JACKS
TONGUE JACKS – SWIVEL JACKS 6400A/6460
• Totally enclosed outer tube retards sand and dirt from coming in contact with miter gears & heavy duty Acme screw
• All bright zinc plated TUFFPLATE finish for longer life • Maximum maneuverability from offset swivel caster assembly • Pivoting jacks have a 2-1/2" diameter mounting hole in a
swivel bracket which fit most other brands of mounting hardware • Large molded handles • Made in USA
6400 6430
Swivel Pin Dia.
3/8" 1/2"
Handle Type Wheel
Max. Travel Tongue Height
10" 25" 10" -
ORDER NO.
106-64000
106-64300
Mfr. No. Mounting* 22457 Bolt-on Side
22359 Bolt-on Side
6" 8"
Capacity
1000 lb./454 kg. 1000 lb./454 kg.
* All bolt-on jacks, fit tongues up to 3" x 5" REPLACEMENT PARTS FOR 6400
6400A, 6460 can be adapted for rounded tongue mounting by welding two plates to the pipe as shown
Description
Wheel Only
Handle
ORDER NO. 106-34000
ORDER NO.
102-03681
103-03260
TONGUE JACK – 3400
• Popular 1200 lb. pivoting import tongue jack, tested to D-L standards. • Zinc plated for additional rust resistance • All mounting hardware included • Installs in minutes
• Individually boxed
Handle Mfr. No. Mounting* Type
22300 Bolt-on Side
Wheel 6"
Capacity 1200 lb./545 kg.
Travel 11"
Max. Swivel
Tongue Pin Dia. Height
25" 1/2"
3400
* All bolt-on jacks, fit tongues up to 3" x 5" For more information see: www.dutton-lainson.com
DELUXE & DELUXE PLUS TONGUE JACKS
Designed & built to stringent OEM specifications, the Sierra trailer jacks deliver the strength needed to hold your trailer’s load when hitched or unhitched from your vehicle. Quickly pivots into a horizontal position for towing. Zinc plated undercoat, with a tough black textured overcoat provides maximum protection. Designed to fit tongues up to 3" x 5". Built-in grease fitting(s) allows for easy lubrication & eliminates the need to remove the cap. Mounting hardware included. Ideal for boat, sports craft, snowmobile & other recreational trailers.
• Full colour graphics on durable corrugated retail boxes • Side-wind handle • Swivel plate & caster designed to leading OEM specifications • Easy installation, tri-lingual assembly instructions • Additional bushing installed for smooth handle cranking • Rugged spoked wheel for durability • Deluxe Plus ORDER NO. 015-054655-10 offers a wheel caster rotating independently
from inner post for extra mobility
054650-10
054655-10
Comfort
ORDER NO. 015-054650-10
DELUXE
015-054655-10
DELUXE PLUS
Mfr. No.
054650-10 054655-10
Load Capacity
1500 lbs. 1500 lbs.
Travel
10" 12"
Wheel Grease Dia. Ports
6" 1
RUGGED
8" 2
DELUXE Extended Sleeved Pull Pin Grip
Handle - -
INCLUDED
INCLUDED
For more information see: catalog.sierraparts.com
HEAVY-DUTY
1243
