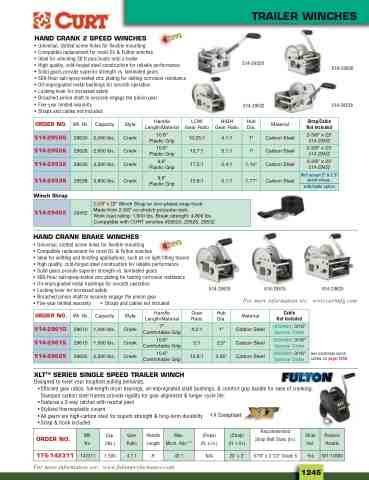

Page 1277 - 2025 Parts & Accessories Catalogue

TRAILER WINCHES
HAND CRANK 2 SPEED WINCHES
• Universal, slotted screw holes for flexible mounting • Compatible replacement for most DL & Fulton winches • Ideal for winching 20 ft plus boats onto a trailer • High quality, cold-forged steel construction for reliable performance • Solid gears provide superior strength vs. laminated gears • 600-Hour salt-spray-tested zinc plating for lasting corrosion resistance • Oil-impregnated metal bushings for smooth operation • Locking lever for increased safety • Broached pinion shaft to securely engage the pinion gear • Five-year limited warranty • Straps and cables not included
514-29520
514-29532
Hub Dia.
1"
1"
1.10"
1.77"
514-29526
514-29538
Strap/Cable Not Included
2-3/8" x 23'
514-29452
2-3/8" x 23'
514-29452
2-3/8" x 23'
514-29452
Will accept 2" & 2.5" winch straps.
with/Cable option
514-29625
ORDER NO.
514-29520
514-29526
514-29532
514-29538
Winch Strap
514-29452
Mfr. No.
29520
29526
29532
29538
29452
Capacity
2,000 lbs.
2,600 lbs.
3,200 lbs.
3,800 lbs.
Style
Crank
Crank
Crank
Crank
Handle Length/Material
10.6" Plastic Grip
10.6" Plastic Grip
9.6" Plastic Grip
9.6" Plastic Grip
LOW Gear Ratio
10.25:1
12.7:1
17.5:1
15.8:1
HIGH Gear Ratio
4.1:1
5.1:1
5.4:1
5.1:1
Material
Carbon Steel
Carbon Steel
Carbon Steel
Carbon Steel
514-29615
2-3/8" x 23" Winch Strap w/ zinc-plated snap hook. Made from 2-3/8" no-stretch polyester web. Work load rating: 1,600 lbs. Break strength: 4,800 lbs. Compatible with CURT winches #29520, 29526, 29532
HAND CRANK BRAKE WINCHES
• Universal, slotted screw holes for flexible mounting • Compatible replacement for most DL & Fulton winches • Ideal for wlifting and hoisting applications, such as on light lifting towers • High quality, cold-forged steel construction for reliable performance • Solid gears provide superior strength vs. laminated gears • 600-Hour salt-spray-tested zinc plating for lasting corrosion resistance • Oil-impregnated metal bushings for smooth operation • Locking lever for increased safety • Broached pinion shaft to securely engage the pinion gear
514-29610
Gear Hub Ratio Dia.
4.2:1 1" 5:1 2.5"
15.8:1 3.25"
For more information see: www.curtmfg.com
• Five-year limited warranty
• Straps and cables not included
ORDER NO. 514-29610 514-29615 514-29625
Mfr. No.
29610 29615 29625
Capacity 1,000 lbs. 1,500 lbs. 2,500 lbs.
Style Crank Crank Crank
Handle Length/Material
7" Comfortable Grip
10.6" Comfortable Grip
10.6" Comfortable Grip
Material Carbon Steel Carbon Steel Carbon Steel
Cable Not Included
(#29460) 3/16" Special Order
(#29460) 3/16" Special Order
(#29460) 3/16" Special Order
See substitute winch cables on page 1250
XLTTM SERIES SINGLE SPEED TRAILER WINCH
Designed to meet your toughest pulling demands. • Efficient gear ratios, full-length drum bearings, oil-impregnated shaft bushings, & comfort grip handle for ease of cranking.
Stamped carbon steel frames provide rigidity for gear alignment & longer cycle life. • Features a 2-way ratchet with neutral pawl • Stylized thermoplastic covers • All gears are high-carbon steel for superb strength & long-term durability Compliant • Strap & hook included
ORDER NO.
Mfr. No.
Cap. (Ibs.)
1,500
Gear Handle Ratio Length
4.1:1 8"
Max. Mech. Adv.**
(Rope) (Strap) (ft. x in.) (ft. x in.)
Recommended Strap Bolt Sizes (in.)
Strap Replace Incl. Handle
Yes 501-10600
175-142311 142311
43:1
N/A 20' x 2"
5/16" x 2-1/2" Grade 5
For more information see: www.fultonperformance.com
1245
