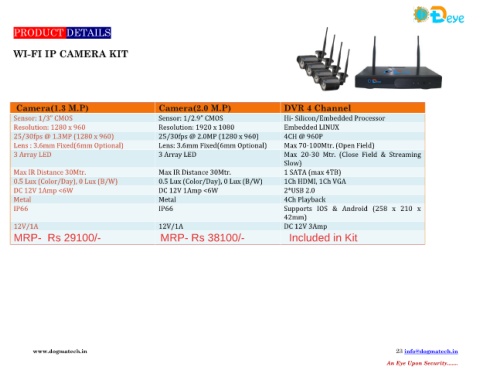

Page 24 - E-Catlogue 18-19 (4)
P. 24
PRODUCT DETAILS
WI-FI IP CAMERA KIT
Camera(1.3 M.P) Camera(2.0 M.P) DVR 4 Channel
Sensor: 1/3” CMOS Sensor: 1/2.9” CMOS Hi- Silicon/Embedded Processor
Resolution: 1280 x 960 Resolution: 1920 x 1080 Embedded LINUX
25/30fps @ 1.3MP (1280 x 960) 25/30fps @ 2.0MP (1280 x 960) 4CH @ 960P
Lens : 3.6mm Fixed(6mm Optional) Lens: 3.6mm Fixed(6mm Optional) Max 70-100Mtr. (Open Field)
3 Array LED 3 Array LED Max 20-30 Mtr. (Close Field & Streaming
Slow)
Max IR Distance 30Mtr. Max IR Distance 30Mtr. 1 SATA (max 4TB)
0.5 Lux (Color/Day), 0 Lux (B/W) 0.5 Lux (Color/Day), 0 Lux (B/W) 1Ch HDMI, 1Ch VGA
DC 12V 1Amp <6W DC 12V 1Amp <6W 2*USB 2.0
Metal Metal 4Ch Playback
IP66 IP66 Supports IOS & Android (258 x 210 x
42mm)
12V/1A 12V/1A DC 12V 3Amp
MRP- Rs 29100/- MRP- Rs 38100/- Included in Kit
www.dogmatech.in 23 info@dogmatech.in
An Eye Upon Security.......
