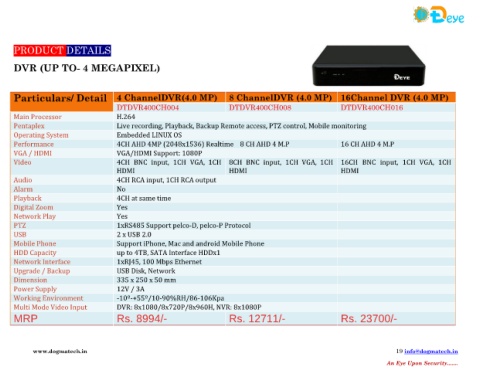

PRODUCT ​DETAILS

DVR (UP TO- 4 MEGAPIXEL)

Particulars/ Detail 4 ChannelDVR(4.0 MP) 8 ChannelDVR (4.0 MP) 16Channel DVR (4.0 MP)
DTDVR400CH004 DTDVR400CH008 DTDVR400CH016
Main Processor H.264
Pentaplex Live recording, Playback, Backup Remote access, PTZ control, Mobile monitoring
Operating System Embedded LINUX OS
Performance 4CH AHD 4MP (2048x1536) Realtime 8 CH AHD 4 M.P 16 CH AHD 4 M.P
VGA / HDMI VGA/HDMI Support: 1080P
Video 4CH BNC input, 1CH VGA, 1CH 8CH BNC input, 1CH VGA, 1CH 16CH BNC input, 1CH VGA, 1CH
HDMI HDMI HDMI
Audio 4CH RCA input, 1CH RCA output
Alarm No
Playback 4CH at same time
Digital Zoom Yes
Network Play Yes
PTZ 1xRS485 Support pelco-D, pelco-P Protocol
USB 2 x USB 2.0
Mobile Phone Support iPhone, Mac and android Mobile Phone
HDD Capacity up to 4TB, SATA Interface HDDx1
Network Interface 1xRJ45, 100 Mbps Ethernet
Upgrade / Backup USB Disk, Network
Dimension 335 x 250 x 50 mm
Power Supply 12V / 3A
Working Environment -10º-+55º/10-90%RH/86-106Kpa
Multi Mode Video Input DVR: 8x1080/8x720P/8x960H, NVR: 8x1080P
MRP Rs. 8994/- Rs. 12711/- Rs. 23700/-
