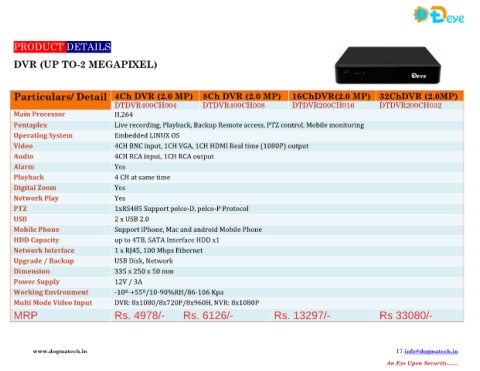

Page 18 - E-Catlogue 18-19 (4)
P. 18
PRODUCT DETAILS
DVR (UP TO-2 MEGAPIXEL)
Particulars/ Detail 4Ch DVR (2.0 MP) 8Ch DVR (2.0 MP) 16ChDVR(2.0 MP) 32ChDVR (2.0MP)
DTDVR400CH004 DTDVR400CH008 DTDVR200CH016 DTDVR200CH032
Main Processor H.264
Pentaplex Live recording, Playback, Backup Remote access, PTZ control, Mobile monitoring
Operating System Embedded LINUX OS
Video 4CH BNC input, 1CH VGA, 1CH HDMI Real time (1080P) output
Audio 4CH RCA input, 1CH RCA output
Alarm Yes
Playback 4 CH at same time
Digital Zoom Yes
Network Play Yes
PTZ 1xRS485 Support pelco-D, pelco-P Protocol
USB 2 x USB 2.0
Mobile Phone Support iPhone, Mac and android Mobile Phone
HDD Capacity up to 4TB, SATA Interface HDD x1
Network Interface 1 x RJ45, 100 Mbps Ethernet
Upgrade / Backup USB Disk, Network
Dimension 335 x 250 x 50 mm
Power Supply 12V / 3A
Working Environment -10º-+55º/10-90%RH/86-106 Kpa
Multi Mode Video Input DVR: 8x1080/8x720P/8x960H, NVR: 8x1080P
MRP Rs. 4978/- Rs. 6126/- Rs. 13297/- Rs 33080/-
www.dogmatech.in 17 info@dogmatech.in
An Eye Upon Security.......
