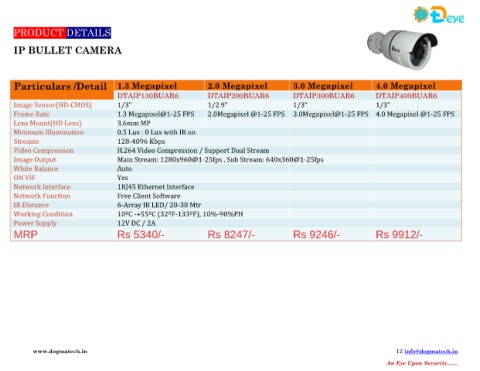

PRODUCT DETAILS
IP BULLET CAMERA
Particulars /Detail 1.3 Megapixel 2.0 Megapixel 3.0 Megapixel 4.0 Megapixel
DTAIP130BUAR6 DTAIP200BUAR6 DTAIP300BUAR6 DTAIP400BUAR6
Image Sensor(HD-CMOS) 1/3” 1/2.9” 1/3” 1/3”
Frame Rate 1.3 Megapixel@1-25 FPS 2.0Megapixel @1-25 FPS 3.0Megapixel@1-25 FPS 4.0 Megapixel @1-25 FPS
Lens Mount(HD Lens) 3.6mm MP
Minimum Illumination 0.5 Lux : 0 Lux with IR on
Streams 128-4096 Kbps
Video Compression H.264 Video Compression / Support Dual Stream
Image Output Main Stream: 1280x960@1-25fps , Sub Stream: 640x360@1-25fps
White Balance Auto
ON VIF Yes
Network Interface 1RJ45 Ethernet Interface
Network Function Free Client Software
IR Distance 6-Array IR LED/ 20-30 Mtr
Working Condition 10ºC -+55ºC (32ºF-133ºF), 10%-90%PH
Power Supply 12V DC / 2A
MRP Rs 5340/- Rs 8247/- Rs 9246/- Rs 9912/-
