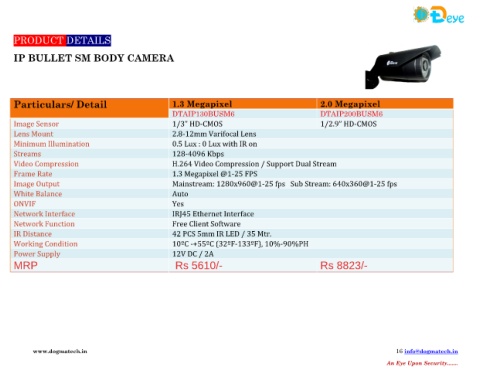

PRODUCT DETAILS
IP BULLET SM BODY CAMERA
Particulars/ Detail 1.3 Megapixel 2.0 Megapixel
DTAIP130BUSM6 DTAIP200BUSM6
Image Sensor 1/3” HD-CMOS 1/2.9” HD-CMOS
Lens Mount 2.8-12mm Varifocal Lens
Minimum Illumination 0.5 Lux : 0 Lux with IR on
Streams 128-4096 Kbps
Video Compression H.264 Video Compression / Support Dual Stream
Frame Rate 1.3 Megapixel @1-25 FPS
Image Output Mainstream: 1280x960@1-25 fps Sub Stream: 640x360@1-25 fps
White Balance Auto
ONVIF Yes
Network Interface IRJ45 Ethernet Interface
Network Function Free Client Software
IR Distance 42 PCS 5mm IR LED / 35 Mtr.
Working Condition 10ºC -+55ºC (32ºF-133ºF), 10%-90%PH
Power Supply 12V DC / 2A
MRP Rs 5610/- Rs 8823/-
