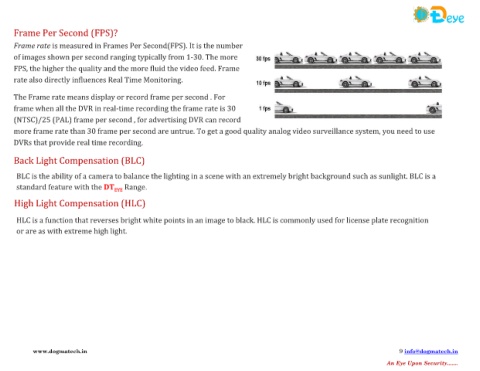

Frame Per Second (FPS)?

Frame rate ​is measured in Frames Per Second(FPS). It is the number
of images shown per second ranging typically from 1-30. The more
FPS, the higher the quality and the more fluid the video feed. Frame

rate also directly influences Real Time Monitoring.

The Frame rate means display or record frame per second . For

frame when all the DVR in real-time recording the frame rate is 30
(NTSC)/25 (PAL) frame per second , for advertising DVR can record
more frame rate than 30 frame per second are untrue. To get a good quality analog video surveillance system, you need to use
DVRs that provide real time recording​.

Back Light Compensation (BLC)

BLC is the ability of a camera to balance the lighting in a scene with an extremely bright background such as sunlight. BLC is a
standard feature with the ​DT​ ​Range​.
EYE​
High Light Compensation (HLC)

HLC is a function that reverses bright white points in an image to black. HLC is commonly used for license plate recognition
or are as with extreme high light.
