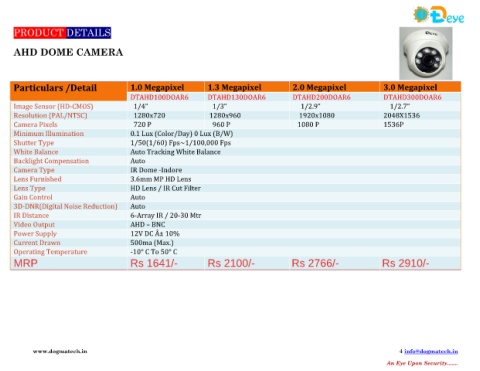

Page 5 - E-Catlogue 18-19 (4)
P. 5
PRODUCT DETAILS
AHD DOME CAMERA
Particulars /Detail 1.0 Megapixel 1.3 Megapixel 2.0 Megapixel 3.0 Megapixel
DTAHD100DOAR6 DTAHD130DOAR6 DTAHD200DOAR6 DTAHD300DOAR6
Image Sensor (HD-CMOS) 1/4” 1/3” 1/2.9” 1/2.7”
Resolution (PAL/NTSC) 1280x720 1280x960 1920x1080 2048X1536
Camera Pixels 720 P 960 P 1080 P 1536P
Minimum Illumination 0.1 Lux (Color/Day) 0 Lux (B/W)
Shutter Type 1/50(1/60) Fps~1/100,000 Fps
White Balance Auto Tracking White Balance
Backlight Compensation Auto
Camera Type IR Dome -Indore
Lens Furnished 3.6mm MP HD Lens
Lens Type HD Lens / IR Cut Filter
Gain Control Auto
3D-DNR(Digital Noise Reduction) Auto
IR Distance 6-Array IR / 20-30 Mtr
Video Output AHD – BNC
Power Supply 12V DC ± 10%
Current Drawn 500ma (Max.)
Operating Temperature -10° C To 50° C
MRP Rs 1641/- Rs 2100/- Rs 2766/- Rs 2910/-
