PRODUCT DETAILS

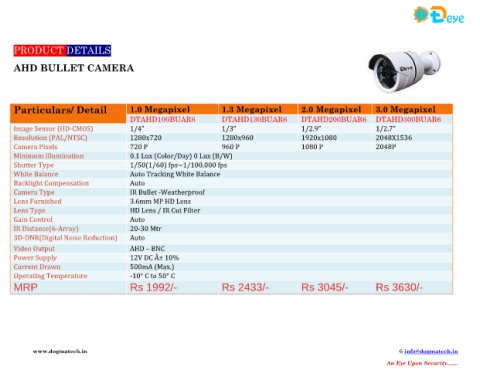

AHD BULLET CAMERA
Particulars/ Detail 1.0 Megapixel 1.3 Megapixel 2.0 Megapixel 3.0 Megapixel
DTAHD100BUAR6 DTAHD130BUAR6 DTAHD200BUAR6 DTAHD300BUAR6
Image Sensor (HD-CMOS) 1/4” 1/3” 1/2.9” 1/2.7”
Resolution (PAL/NTSC) 1280x720 1280x960 1920x1080 2048X1536
Camera Pixels 720 P 960 P 1080 P 2048P
Minimum Illumination 0.1 Lux (Color/Day) 0 Lux (B/W)
Shutter Type 1/50(1/60) fps~1/100,000 fps
White Balance Auto Tracking White Balance
Backlight Compensation Auto
Camera Type IR Bullet -Weatherproof
Lens Furnished 3.6mm MP HD Lens
Lens Type HD Lens / IR Cut Filter
Gain Control Auto
IR Distance(6-Array) 20-30 Mtr
3D-DNR(Digital Noise Reduction) Auto
Video Output AHD – BNC
Power Supply 12V DC ± 10%
Current Drawn 500mA (Max.)
Operating Temperature -10° C to 50° C
MRP Rs 1992/- Rs 2433/- Rs 3045/- Rs 3630/-
