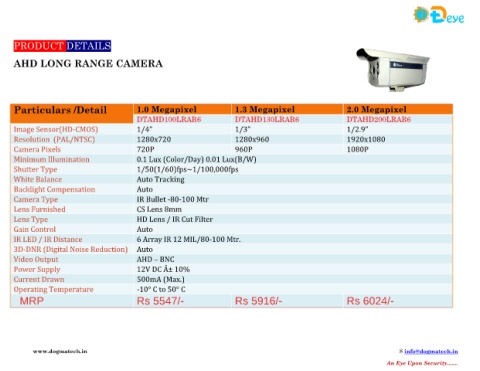

PRODUCT DETAILS
AHD LONG RANGE CAMERA
Particulars /Detail 1.0 Megapixel 1.3 Megapixel 2.0 Megapixel
DTAHD100LRAR6 DTAHD130LRAR6 DTAHD200LRAR6
Image Sensor(HD-CMOS) 1/4” 1/3” 1/2.9”
Resolution (PAL/NTSC) 1280x720 1280x960 1920x1080
Camera Pixels 720P 960P 1080P
Minimum Illumination 0.1 Lux (Color/Day) 0.01 Lux(B/W)
Shutter Type 1/50(1/60)fps~1/100,000fps
White Balance Auto Tracking
Backlight Compensation Auto
Camera Type IR Bullet -80-100 Mtr
Lens Furnished CS Lens 8mm
Lens Type HD Lens / IR Cut Filter
Gain Control Auto
IR LED / IR Distance 6 Array IR 12 MIL/80-100 Mtr.
3D-DNR (Digital Noise Reduction) Auto
Video Output AHD – BNC
Power Supply 12V DC ± 10%
Current Drawn 500mA (Max.)
Operating Temperature -10° C to 50° C
MRP Rs 5547/- Rs 5916/- Rs 6024/-
