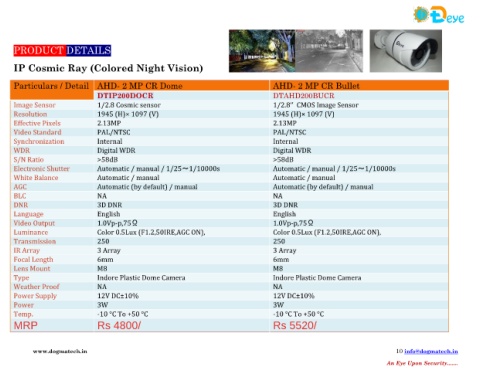

PRODUCT DETAILS
IP Cosmic Ray (Colored Night Vision)
Particulars / Detail AHD- 2 MP CR Dome AHD- 2 MP CR Bullet
DTIP200DOCR DTAHD200BUCR
Image Sensor 1/2.8 Cosmic sensor 1/2.8‘’ CMOS Image Sensor
Resolution 1945 (H)× 1097 (V) 1945 (H)× 1097 (V)
Effective Pixels 2.13MP 2.13MP
Video Standard PAL/NTSC PAL/NTSC
Synchronization Internal Internal
WDR Digital WDR Digital WDR
S/N Ratio >58dB >58dB
Electronic Shutter Automatic / manual / 1/25～1/10000s Automatic / manual / 1/25～1/10000s
White Balance Automatic / manual Automatic / manual
AGC Automatic (by default) / manual Automatic (by default) / manual
BLC NA NA
DNR 3D DNR 3D DNR
Language English English
Video Output 1.0Vp-p,75Ω 1.0Vp-p,75Ω
Luminance Color 0.5Lux (F1.2,50IRE,AGC ON), Color 0.5Lux (F1.2,50IRE,AGC ON),
Transmission 250 250
IR Array 3 Array 3 Array
Focal Length 6mm 6mm
Lens Mount M8 M8
Type Indore Plastic Dome Camera Indore Plastic Dome Camera
Weather Proof NA NA
Power Supply 12V DC±10% 12V DC±10%
Power 3W 3W
Temp. -10 °C To +50 °C -10 °C To +50 °C
MRP Rs 4800/ Rs 5520/
