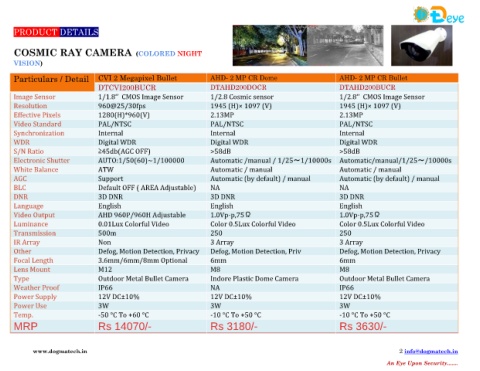

Page 3 - E-Catlogue 18-19 (4)
P. 3
PRODUCT DETAILS
COSMIC RAY CAMERA (COLORED NIGHT
VISION)
Particulars / Detail CVI 2 Megapixel Bullet AHD- 2 MP CR Dome AHD- 2 MP CR Bullet
DTCVI200BUCR DTAHD200DOCR DTAHD200BUCR
Image Sensor 1/1.8‘’ CMOS Image Sensor 1/2.8 Cosmic sensor 1/2.8‘’ CMOS Image Sensor
Resolution 960@25/30fps 1945 (H)× 1097 (V) 1945 (H)× 1097 (V)
Effective Pixels 1280(H)*960(V) 2.13MP 2.13MP
Video Standard PAL/NTSC PAL/NTSC PAL/NTSC
Synchronization Internal Internal Internal
WDR Digital WDR Digital WDR Digital WDR
S/N Ratio ≥45db(AGC OFF) >58dB >58dB
Electronic Shutter AUTO:1/50(60)~1/100000 Automatic /manual / 1/25～1/10000s Automatic/manual/1/25～/10000s
White Balance ATW Automatic / manual Automatic / manual
AGC Support Automatic (by default) / manual Automatic (by default) / manual
BLC Default OFF ( AREA Adjustable) NA NA
DNR 3D DNR 3D DNR 3D DNR
Language English English English
Video Output AHD 960P/960H Adjustable 1.0Vp-p,75Ω 1.0Vp-p,75Ω
Luminance 0.01Lux Colorful Video Color 0.5Lux Colorful Video Color 0.5Lux Colorful Video
Transmission 500m 250 250
IR Array Non 3 Array 3 Array
Other Defog, Motion Detection, Privacy Defog, Motion Detection, Priv Defog, Motion Detection, Privacy
Focal Length 3.6mm/6mm/8mm Optional 6mm 6mm
Lens Mount M12 M8 M8
Type Outdoor Metal Bullet Camera Indore Plastic Dome Camera Outdoor Metal Bullet Camera
Weather Proof IP66 NA IP66
Power Supply 12V DC±10% 12V DC±10% 12V DC±10%
Power Use 3W 3W 3W
Temp. -50 °C To +60 °C -10 °C To +50 °C -10 °C To +50 °C
MRP Rs 14070/- Rs 3180/- Rs 3630/-
www.dogmatech.in 2 info@dogmatech.in
An Eye Upon Security.......
