Page 260 - 2019종합카다로그_Pressure gauge
P. 260

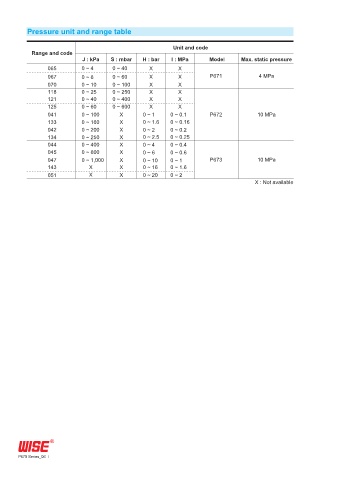

Pressure unit and range table
Unit and code
Range and code
J : kPa S : mbar H : bar I : MPa Model Max. static pressure
065 0 ~ 4 0 ~ 40 X X
067 0 ~ 6 0 ~ 60 X X P671 4 MPa
070 0 ~ 10 0 ~ 100 X X
118 0 ~ 25 0 ~ 250 X X
121 0 ~ 40 0 ~ 400 X X
125 0 ~ 60 0 ~ 600 X X
041 0 ~ 100 X 0 ~ 1 0 ~ 0.1 P672 10 MPa
133 0 ~ 160 X 0 ~ 1.6 0 ~ 0.16
042 0 ~ 200 X 0 ~ 2 0 ~ 0.2
134 0 ~ 250 X 0 ~ 2.5 0 ~ 0.25
044 0 ~ 400 X 0 ~ 4 0 ~ 0.4
045 0 ~ 600 X 0 ~ 6 0 ~ 0.6
047 0 ~ 1,000 X 0 ~ 10 0 ~ 1 P673 10 MPa
143 X X 0 ~ 16 0 ~ 1.6
051 X X 0 ~ 20 0 ~ 2
X : Not available
P670 Series_06
