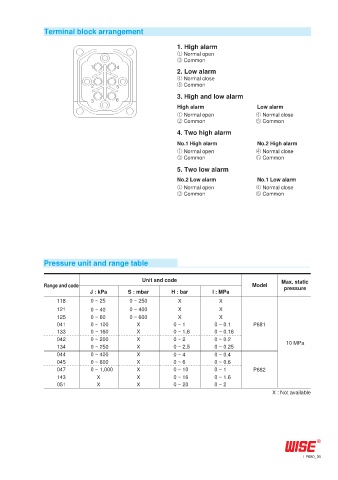

Terminal block arrangement

1. High alarm
˝ Normal open
˞ Common
2. Low alarm
ˠ Normal close
ˡ Common
3. High and low alarm
High alarm Low alarm
˝ Normal open ˠ Normal close
˞ Common ˡ Common
4. Two high alarm
No.1 High alarm No.2 High alarm
˝ Normal open ˠ Normal close
˞ Common ˡ Common
5. Two low alarm
No.2 Low alarm No.1 Low alarm
˝ Normal open ˠ Normal close
˞ Common ˡ Common

Pressure unit and range table

Unit and code Max. static
Range and code Model pressure
J : kPa S : mbar H : bar I : MPa
118 0 ~ 25 0 ~ 250 X X
121 0 ~ 40 0 ~ 400 X X
125 0 ~ 60 0 ~ 600 X X
041 0 ~ 100 X 0 ~ 1 0 ~ 0.1 P681
133 0 ~ 160 X 0 ~ 1.6 0 ~ 0.16
042 0 ~ 200 X 0 ~ 2 0 ~ 0.2 10 MPa
134 0 ~ 250 X 0 ~ 2.5 0 ~ 0.25
044 0 ~ 400 X 0 ~ 4 0 ~ 0.4
045 0 ~ 600 X 0 ~ 6 0 ~ 0.6
047 0 ~ 1,000 X 0 ~ 10 0 ~ 1 P682
143 X X 0 ~ 16 0 ~ 1.6
051 X X 0 ~ 20 0 ~ 2
X : Not available

P680_05
