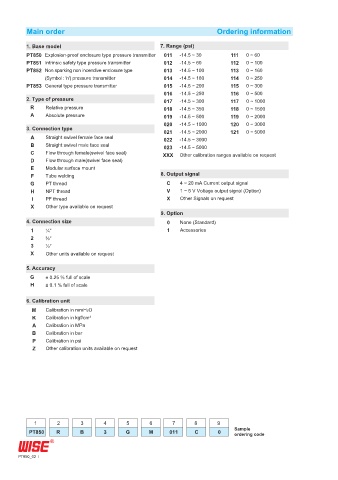

Main order Ordering information

1. Base model 7. Range (psi)
PT850 Explosion-proof enclosure type pressure transmitter 011 -14.5 ~ 30 111 0 ~ 60
PT851 Intrinsic safety type pressure transmitter 012 -14.5 ~ 60 112 0 ~ 100
PT852 Non sparking non incendive enclosure type 013 -14.5 ~ 100 113 0 ~ 160
(Symbol : 'n') pressure transmitter 014 -14.5 ~ 160 114 0 ~ 250
PT853 General type pressure transmitter 015 -14.5 ~ 200 115 0 ~ 300
016 -14.5 ~ 250 116 0 ~ 500
2. Type of pressure 017 -14.5 ~ 300 117 0 ~ 1000
R Relative pressure 018 -14.5 ~ 350 118 0 ~ 1500
A Absolute pressure 019 -14.5 ~ 500 119 0 ~ 2000
020 -14.5 ~ 1000 120 0 ~ 3000
3. Connection type 021 -14.5 ~ 2000 121 0 ~ 5000
A Straight swivel female face seal 022 -14.5 ~ 3000
B Straight swivel male face seal 023 -14.5 ~ 5000
C Flow through female(swivel face seal) XXX Other calibration ranges available on request
D Flow through male(swivel face seal)
E Modular surface mount
F Tube welding 8. Output signal
G PT thread C 4 ~ 20 mA Current output signal
H NPT thread V 1 ~ 5 V Voltage output signal (Option)
I PF thread X Other Signals on request
X Other type available on request
9. Option
4. Connection size 0 None (Standard)
1 ¼" 1 Accessories
2 ⅜"
3 ½"
X Other units available on request

5. Accuracy
G ± 0.25 % full of scale
H ± 0.1 % full of scale

6. Calibration unit
M Calibration in mmH2O
K Calibration in kgf/cm²
A Calibration in MPa
B Calibration in bar
P Calibration in psi
Z Other calibration units available on request

1 2 3 4 5 6 7 8 9
Sample
PT850 R B 3 G M 011 C 0 ordering code

PT850_02
