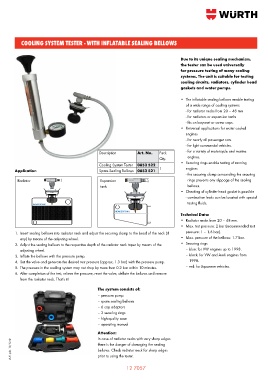

Page 1100 - Wurth Total Catalogue

cooling system tester - with inflatable sealing bellows

Due to its unique sealing mechanism,
the tester can be used universally
for pressure testing of many cooling
systems. The unit is suitable for testing
cooling circuits, radiators, cylinder head
gaskets and water pumps.

• The inflatable sealing bellows enable testing
of a wide range of cooling systems:
- for radiator necks from 20 – 48 mm
- for radiators or expansion tanks
- fits on bayonet or screw caps.
• Universal applications for water cooled
engines
- for nearly all passenger cars
- for light commercial vehicles.
Description Art. No. Pack - for a variety of motorcycle and marine
Qty. engines.
Cooling System Tester 0853 522 • Securing rings enable testing of running
Application Spare Sealing Bellows 0853 521 1 engines
- the securing clamp surrounding the securing
Radiator SYSTEM BLADDER Expansion SYSTEM BLADDER rings prevents any slippage of the sealing
tank bellows.
• Checking of cylinder head gasket is possible
- combustion leaks can be located with special
testing fluids.

Technical Data:
• Radiator necks from 20 – 48 mm.
• Max. test pressure: 2 bar (recommended test
1. Insert sealing bellows into radiator neck and adjust the securing clamp to the bead of the neck (if pressure: 1 – 1.6 bar).
any) by means of the adjusting wheel. • Max. pressure of the bellows: 1.7 bar.
2. Adjust the sealing bellows to the respective depth of the radiator neck taper by means of the • Securing rings
adjusting wheel. – blue: for VW engines up to 1998.
3. Inflate the bellows with the pressure pump. – black: for VW and Audi engines from
4. Set the valve and generate the desired test pressure (approx. 1.3 bar) with the pressure pump. 1998.
5. The pressure in the cooling system may not drop by more than 0.2 bar within 10 minutes. – red: for Japanese vehicles.
6. After completion of the test, relieve the pressure, reset the valve, deflate the bellows and remove
from the radiator neck. That’s it!

The system consists of:
– pressure pump
– spare sealing bellows
– 6 cap adaptors
– 3 securing rings
– high-quality case
– operating manual
Attention:
In case of radiator necks with very sharp edges
AUS. pub. 10/12 © there is the danger of damaging the sealing
bellows. Check radiator neck for sharp edges
prior to using the tester.
