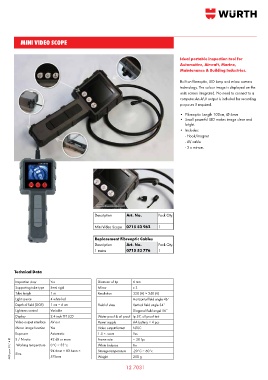

MINI VIDEO SCOPE

Ideal portable inspection tool for
Automotive, Aircraft, Marine,
Maintenance & Building Industries.

Built on fibreoptic, LED lamp and micro camera
technology. The colour image is displayed on the
units screen integrated. No need to connect to a
computer.An A\V output is included for recording
purposes if required.

• Fibreoptic: Length 100cm, Ø 6mm
• Small powerful LED makes image clear and
bright.
• Includes:
- Hook/magnet
- AV cable
- 3 x mirrors.

Description Art. No. Pack Qty.

Mini Video Scope 0715 53 962 1

Replacement Fibreoptic Cables
Description Art. No. Pack Qty.
1 metre 0715 53 776 1

Technical Data

Inspection view Yes Diameter of tip 6 mm
Supporting tube type Semi rigid Mirror x 3
Tube length 1 m Resolution 320 (H) × 240 (V)
Light source 4 white led Horizontal field angle 46˚
Depth of field (DOF) 1 cm ∼ 6 cm Field of view Vertical field angle 34˚
Lightness control Variable Diagonal field angel 56˚
Display 2.4 inch TFT LCD Water proof & oil proof Ip 57, oil proof test
Video output interface AV out Power supply AA battery × 4 pcs
Mirror image function Yes Video output format NTSC
Exposure Automatic 1.5 × zoom Yes
S / N ratio
42 dB or more
∼ 30 fps
Frame rate
AUS. pub. 01/16 © Working temperature 0˚C ∼ 55˚c White balance Fix
Storage temperature
94.6mm × 83.6mm ×
-20˚C ∼ 60˚c
Size
576mm
Weight
250 g
