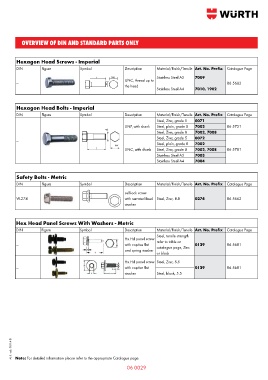

Page 390 - Wurth Total Catalogue

OVERVIEW OF DIN AND STANDARD PARTS ONLY

Hexagon Head Screws - Imperial
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page

L SW UNC, thread up to Stainless Steel A2 7009
— d 06 5682
the head
Stainless Steel A4 7010, 1902

Hexagon Head Bolts - Imperial
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
Steel, Zinc, grade 5 0071
UNF, with shank Steel, plain, grade 8 7002 06 5721
Steel, Zinc, grade 8 7002, 7008
Steel, Zinc, grade 5 0072
—
sw Steel, plain, grade 8 7002
UNC, with shank Steel, Zinc, grade 8 7002, 7008 06 5701
Stainless Steel A2 7003
Stainless Steel A4 7004

Safety Bolts - Metric
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page

self-lock screw
W-274 with serrated fixed Steel, Zinc, 8.8 0274 06 5662
washer

Hex Head Panel Screws With Washers - Metric
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
Steel, tensile strength
Hx Hd panel screw refer to table on
― with captive flat catalogue page, Zinc 0129 06 5681
and spring washer
or black

Hx Hd panel screw Steel, Zinc, 5.5
― with captive flat 0129 06 5681
washer Steel, black, 5.5

AUS. pub. 09/14 © Note: For detailed information please refer to the appropriate Catalogue page.

06 0029
