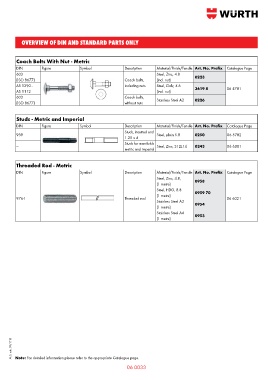

Page 392 - Wurth Total Catalogue

OVERVIEW OF DIN AND STANDARD PARTS ONLY

Coach Bolts With Nut - Metric
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
603 Steel, Zinc, 4.8
(ISO 8677) Coach bolts, (incl. nut) 0223
AS 1390 - including nuts Steel, Galv, 4.6 3619 8 06 5781
AS 1112 (incl. nut)
603 Coach bolts,
(ISO 8677) without nuts Stainless Steel A2 0226

Studs - Metric and Imperial
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
Studs, inserted end
939 Steel, plain 5.8 0250 06 5782
1.25 x d
Studs for manifolds
― Steel, Zinc, S12L14 0243 06 6001
metric and imperial

Threaded Rod - Metric
DIN Figure Symbol Description Material/Finish/Tensile Art. No. Prefix Catalogue Page
Steel, Zinc, 4.8, 0958
(1 metre)
Steel, HDG, 8.8 0959 70
(1 metre)
976-1 Threaded rod 06 6021
Stainless Steel A2 0954
(1 metre)
Stainless Steel A4
(1 metre) 0953

AUS. pub. 09/17 © Note: For detailed information please refer to the appropriate Catalogue page.
