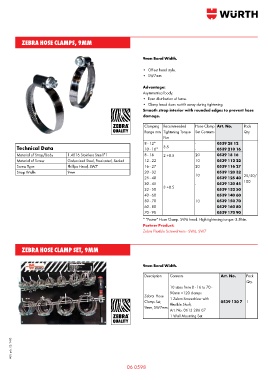

zebra hose clamps, 9mm

9mm Band Width.

• Off-set head style.
• SW7mm

Advantage:
Asymmetrical body.
• Even distribution of force.
• Clamp head does not tilt away during tightening.
Smooth strap interior with rounded edges to prevent hose
damage.

Clamping Recommended Hose Clamp Art. No. Pack
Range mm Tightening Torque Set Contents Qty.
Nm
8 - 12* - 0539 28 12
Technical Data 10 - 16* 3.5 - 0539 210 16
Material of Strap/Body 1.4016 Stainless Steel F1 8 - 16 2 +0.5 20 0539 18 16
Material of Screw Galvanised Steel, Passivated, Sealed 12 - 22 10 0539 112 22
Screw Type Phillips Head, SW7 16 - 27 20 0539 116 27
Strap Width 9mm 20 - 32 10 0539 120 32
25 - 40 0539 125 40 25/50/
30 - 45 - 0539 130 45 100
32 - 50 3 +0.5 0539 132 50
40 - 60 0539 140 60
50 - 70 10 0539 150 70
60 - 80 0539 160 80
70 - 90 0539 170 90
* "Power" Hose Clamp. SW6 head. High tightening torque -3.5Nm.
Partner Product:
Zebra Flexible Screwdrivers - SW6, SW7

zebra hose clamp set, 9mm

9mm Band Width.

Description Contents Art. No. Pack
Qty.
10 sizes from 8 - 16 to 70 -
10
12 90mm =120 clamps
Zebra Hose 1 Zebra Screwdriver with
Clamp Set, Flexible Shaft, 0539 120 7 1
9mm, SW7mm.
Art. No. 0613 286 07
1 Wall Mounting Set.
