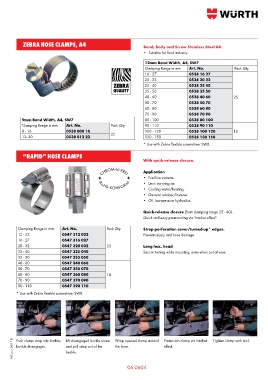

Page 404 - Wurth Total Catalogue

ZEBRA HOSE CLAMPS, A4 Band, Body and Screw Stainless Steel A4.

• Suitable for food industry.
12mm Band Width, A4, SW7
Clamping Range in mm Art. No. Pack Qty.
16 - 27 0538 16 27
20 - 32 0538 20 32
25 - 40 0538 25 40
35 - 50 0538 35 50
40 - 60 0538 40 60 25
50 - 70 0538 50 70
60 - 80 0538 60 80
70 - 90 0538 70 90
9mm Band Width, A4, SW7 80 - 100 0538 80 100
Clamping Range in mm Art. No. Pack Qty. 90 - 110 0538 90 110
8 - 16 0538 008 16 100 - 120 0538 100 120 10
12- 20 0538 012 22 25 130 - 150 0538 130 150
* Use with Zebra flexible screwdriver SW8.

“RAPID” HOSE CLAMPS
With quick-release closure.

Application
• Fuel line systems.
• Lines carrying air.
• Cooling water/heating.
• General retainer/fastener
• Oil, low-pressure hydraulics.

Quick-release closure (from clamping range 25 - 40).
Quick and easy premounting via "ratchet effect".
Clamping Range in mm Art. No. Pack Qty. Strap perforation cover/turned-up* edges.
12 - 22 0547 312 022 Prevents injury and hose damage.
16 - 27 0547 316 027
20 - 32 0547 320 032 25 Long hex. head
25 - 40 0547 325 040 Secure turning while mounting, even when out of view.
35 - 50 0547 335 050
40 - 60 0547 340 060
50 - 70 0547 350 070
60 - 80 0547 360 080 10
70 - 90 0547 370 090
90 - 110 0547 390 110
* Use with Zebra flexible screwdriver SW8.

AUS. pub. 06/17 © Push clamp strap into buckle; Lift disengaged buckle screw Wrap opened clamp around Pretension clamp via ratchet Tighten clamp with tool.
effect.
and pull strap out of the
the hose.
buckle disengages.
buckle.
