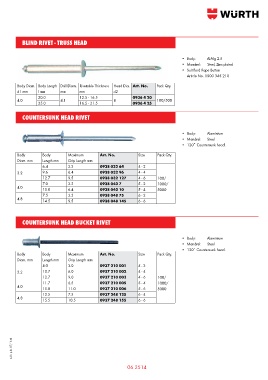

Page 460 - Wurth Total Catalogue

BLIND RIVET - TRUSS HEAD

• Body: AIMg 2.5
• Mandrel: Steel, Zinc plated
• Suit Ford Rope Button
Article No. 1500 345 210

Body Diam. Body Length Drill Diam. Rivetable Thickness Head Dia. Art. No. Pack Qty.
d1 mm l mm mm mm d2
20.0 12.5 - 16.5 0936 4 20
4.0 4.1 8 100/500
25.0 16.5 - 21.5 0936 4 25

COUNTERSUNK HEAD RIVET

• Body: Aluminium
• Mandrel: Steel
• 120˚ Countersunk head.

Body Body Maximum Art. No. Size Pack Qty.
Diam. mm Length mm Grip Length mm
6.4 3.2 0938 032 64 4 - 2
3.2 9.6 6.4 0938 032 96 4 - 4
12.7 9.5 0938 032 127 4 - 6 100/
7.0 3.2 0938 040 7 5 - 2 1000/
4.0
10.0 6.4 0938 040 10 5 - 4 5000
7.5 3.2 0938 048 75 6 - 2
4.8 14.5 9.5 0938 048 145 6 - 6

COUNTERSUNK HEAD BUCKET RIVET

• Body: Aluminium
• Mandrel: Steel
• 120˚ Countersunk head.
Body Body Maximum Art. No. Size Pack Qty.
Diam. mm Length mm Grip Length mm
8.0 3.0 0937 210 001 4 - 2
3.2 10.7 6.0 0937 210 002 4 - 4
12.7 9.0 0937 210 003 4 - 6 100/
11.7 6.5 0937 210 005 5 - 4 1000/
4.0 15.0 11.0 0937 210 006 5 - 6 5000
12.5 7.5 0937 248 125 6 - 4
4.8
15.5 10.5 0937 248 155 6 - 6
