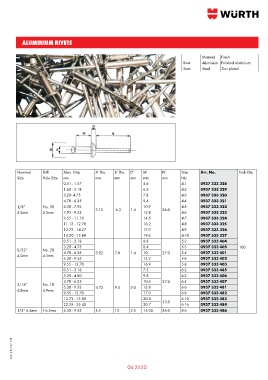

Page 462 - Wurth Total Catalogue

ALUMINIUM RIVETS

Material Finish
Rivet Aluminium Polished aluminium
Stem Steel Zinc plated

Nominal Drill Max. Grip A’ Dia. B’ Dia. D’ M’ N’ Size Art. No. Pack Qty.
Size Hole Size mm mm mm mm mm mm No.
0.51 - 1.57 4.6 4-1 0937 333 328
1.60 - 3.18 6.2 4-2 0937 333 329
3.20- 4.75 7.8 4-3 0937 333 320
4.78 - 6.35 9.4 4-4 0937 333 321
1/8” No. 30 6.38 - 7.92 10.9 4-5 0937 333 322
3.2mm 3.3mm 7.95 - 9.53 3.12 6.3 1.4 12.8 26.0 4-6 0937 333 323
9.55 - 11.10 14.5 4-7 0937 333 324
11.13 - 12.70 16.2 4-8 0937 333 325
12.73 - 14.27 17.9 4-9 0937 333 326
14.30 - 15.88 19.6 4-10 0937 333 327
0.51 - 3.18 6.8 5-2 0937 333 404
3.20 - 4.75 8.4 5-3 0937 333 405 100
5/32” No. 20 4.78 - 6.35 3.92 7.8 1.4 10 27.0 5-4 0937 333 401
4.0mm 4.1mm
6.38 - 9.53 13.2 5-6 0937 333 402
9.55 - 12.70 16.9 5-8 0937 333 403
0.51 - 3.18 7.5 6-2 0937 333 485
3.20 - 4.80 9.8 6-3 0937 333 406
4.78 - 6.35 10.6 27.0 6-4 0937 333 407
3/16” No. 10 6.38 - 9.53 13.8 6-6 0937 333 481
4.8mm 4.9mm 4.72 9.4 2.0
9.55 - 12.70 17.0 6-8 0937 333 482
12.73 - 15.88 20.8 6-10 0937 333 483
22.25 - 25.40 30.7 33.0 6-16 0937 333 484
1/4” 6.4mm F 6.5mm 6.38 - 9.53 5.5 13 2.5 15.08 36.0 8-6 0937 333 486
