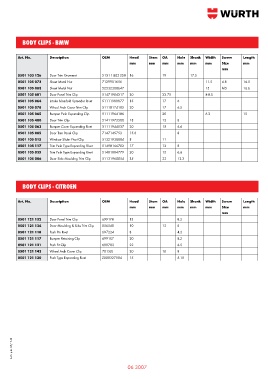

Page 475 - Wurth Total Catalogue

BODY CLIPS - BMW

Art. No. Description OEM Head Stem OA Hole Shank Width Screw Length
mm mm mm mm mm mm SIze mm
mm
0501 103 126 Door Trim Grommet 5131-1-802-258 16 19 17.5
0501 105 073 Sheet Metal Nut 7129901656 11.5 4.8 16.5
0501 105 083 Sheet Metal Nut 52532308647 15 M5 16.6
0501 105 601 Door Panel Trim Clip 51471904317 20 22.75 8-8.5
0501 105 064 Intake Manifold Spreader Rivet 51111908077 15 17 6
0501 105 078 Wheel Arch Cover Trim Clip 51118174185 20 17 6.5
0501 105 065 Bumper Push Expanding Clip 51111964186 20 6.2 15
0501 105 400 Door Trim Clip 51411973500 18 15 8
0501 105 063 Bumper Cover Expanding Rivet 51111944537 20 15 6.6
0501 105 085 Door Trim Panel Clip 7147145753 15.6 8
0501 105 015 Window Slider Pivot Clip 51321938884 8 11
0501 105 117 Trim Push Type Expanding Rivet 51498166702 17 12 8
0501 105 035 Trim Push Type Expanding Rivet 51481884779 20 15 6.6
0501 105 006 Door Side Moulding Trim Clip 51131960054 35 22 12.3

BODY CLIPS - CITROEN

Art. No. Description OEM Head Stem OA Hole Shank Width Screw Length
mm mm mm mm mm mm SIze mm
mm
0501 121 132 Door Panel Trim Clip 6991Y8 13 8.2
0501 121 134 Door Moulding & Side Trim Clip 856540 10 12 8
0501 121 118 Push Pin Rivet 697224 8 4.2
0501 121 117 Bumper Retaining Clip 6991X7 20 8.2
0501 121 121 Push Fit Clip 699783 22 6.5
0501 121 143 Wheel Arch Cover Clip 7013J0 20 10 8
0501 121 120 Push Type Expanding Rivet Z000327504 15 5.15

AUS. pub. 05/16 ©

06 3007
