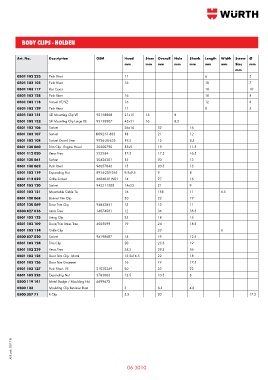

Page 478 - Wurth Total Catalogue

BODY CLIPS - HOLDEN

Art. No. Description OEM Head Stem Overall Hole Shank Length Width Screw Ø
mm mm mm mm mm mm mm Size mm
mm
0501 102 223 Push Rivet 11 6 5
0501 103 105 Push Rivet 16 10 7
0501 103 117 Bar Cover 18 10
0501 103 128 Push Rivet 16 10 8
0501 103 118 Scrivet VT/VZ 16 12 8
0501 103 129 Push Rivet 11 8 5
0501 103 131 Sill Mounting Clip VE 92138808 21x15 16 8
0501 103 132 Sill Mounting Clip Large VE 92138807 45x31 16 8.5
0501 103 106 Scrivet 26x14 32 16
0501 103 107 Scrivet B092-51-833 18 21 12
0501 103 108 Scrivet Guard Liner 9926-50-635 19.5 15 8.5
0501 130 060 Trim Clip - Engine Hood 20200750 13x5 13 11.5
0501 112 020 Xmas Tree 332364 17.5 17.5 16.5
0501 130 061 Scrivet 20426301 15 20 13
0501 130 062 Push Rivet 96057846 15 20.5 13
0501 103 119 Expanding Nut 8934-201-263 9.5x9.5 9 8
0501 112 022 Grille Scrivet 66860-01W01 14 27 16
0501 103 120 Scrivet 942211500 14x22 21 9
0501 103 121 Mountable Cable Tie 16 158 11 6.5
0501 130 068 Bonnet Trim Clip 30 22 19
0501 130 069 Door Trim Clip 94842841 13 13 11
0500 827 016 Xmas Tree 14074081 12 36 35.5
0501 103 123 Lining Clip 35 18 15
0501 103 109 Door/Trim Xmas Tree 4005099 19 24 18.5
0501 103 114 Grille Clip 23 8
0500 827 020 Scrivet 94198687 14 19 12.5
0501 103 124 Trim Clip 20 23.5 19
0501 102 239 Xmas Tree 34.5 29.5 36
0501 103 125 Door Trim Clip - Metal 15.5x16.5 22 18
0501 103 126 Door Trim Grommet 16 19 17.5
0501 103 127 Push Rivet - VE 21030249 20 33 22
0501 102 225 Expanding Nut 3783006 12.5 10.5 8
0500 119 141 Metal Badge / Moulding Nut 6699672
0500 133 Moulding Clip Retainer Rivet 5 8.5 4.8
0500 307 71 R Clip 5.5 20 17.5
