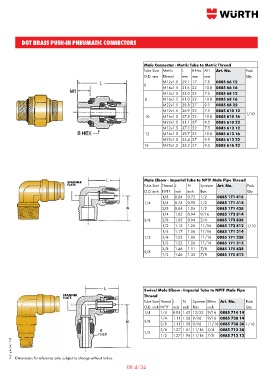

Page 766 - Wurth Total Catalogue

DOT BRASS PUSH-IN PNEUMATIC CONNECTORS

Male Connector - Metric Tube to Metric Thread
Tube Size Metric L B Hex M1 Art. No. Pack
O.D. mm Thread mm mm mm Qty.
M12x1.5 29.1 17 7.5 0885 66 12
6
M16x1.5 31.6 22 10.0 0885 66 16
M12x1.5 33.0 22 7.5 0885 68 12
8 M16x1.5 31.0 22 10.0 0885 68 16
M22x1.5 28.8 27 9.5 0885 68 22
M12x1.5 36.9 22 7.5 0885 610 12
10 M16x1.5 37.5 22 10.0 0885 610 16 1/10
M22x1.5 31.1 27 9.5 0885 610 22
M12x1.5 37.3 22 7.5 0885 612 12
12 M16x1.5 39.7 22 10.0 0885 612 16
M22x1.5 33.4 27 9.5 0885 612 22
16 M22x1.5 33.3 27 9.5 0885 616 22

Male Elbow - Imperial Tube to NPTF Male Pipe Thread
SPANNER
FLATS Tube Size Thread L N Spanner Art. No. Pack
O.D. inch NPTF inch inch flats Qty
1/8 0.84 0.72 1/2 0885 171 418
1/4 1/4 0.74 0.90 1/2 0885 171 414
3/8 0.84 1.06 1/2 0885 171 438
1/4 1.05 0.94 9/16 0885 173 814
3/8 3/8 1.05 0.94 3/4 0885 173 838
1/2 1.12 1.26 11/16 0885 173 812 1/10
1/4 1.17 1.06 11/16 0885 171 214
1/2 3/8 1.22 1.06 11/16 0885 171 238
1/2 1.22 1.26 11/16 0885 171 212
3/8 1.46 1.11 7/8 0885 175 838
5/8
1/2 1.46 1.32 7/8 0885 175 812

Swivel Male Elbow - Imperial Tube to NPTF Male Pipe
SPANNER Thread
FLATS
Tube Size Thread L N Spanner BHex Art. No. Pack
O.D. inch NPTF inch inch flats inch Qty.
1/4 1/4 0.84 1.43 13/32 9/16 0885 714 14
1/4 1.11 1.58 9/16 9/16 0885 738 14
3/8
3/8 1.11 1.58 9/16 11/16 0885 738 38 1/10
3/8 1.27 1.81 11/16 3/4 0885 712 38
1/2
1/2 1.27 1.96 11/16 7/8 0885 712 12
AUS. pub. 04/15 © Dimensions for reference only, subject to change without notice.
