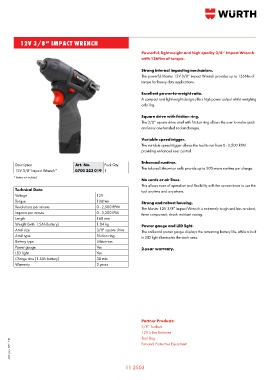

Page 893 - Wurth Total Catalogue

12V 3/8“ IMPACT WRENCH

Powerful, lightweight and high quality 3/8“ Impact Wrench
with 136Nm of torque.

Strong internal impacting mechanism.
The powerful Master 12V 3/8“ Impact Wrench provides up to 136Nm of
torque for heavy duty applications.

Excellent power-to-weight ratio.
A compact and lightweight design o ers high power output whilst weighing
only1kg.

Square drive with friction ring.
The 3/8” square drive anvil with friction ring allows the user to make quick
and easy one-handed socket changes.

Variable speed trigger.
The variable speed trigger allows the tool to run from 0 - 2,500 RPM
providing enhanced user control.

Enhanced runtime.
Description Art. No. Pack Qty.
12V 3/8" Impact Wrench* 0700 223 019 1 The tailored Lithium-ion cells provide up to 30% more runtime per charge.

* Battery not included.
No cords or air lines.
This allows ease of operation and exibility with the convenience to use the
Technical Data tool anytime and anywhere.
Voltage 12V
Torque 136Nm Strong and robust housing.
Revolutions per minute 0 - 2,500 RPM The aster 1 3 Impact Wrench is extremely tough and has a robust
Impacts per minute 0 - 3,300 IPM three component, shock resistant casing.
Length 168 mm
Weight (with 1.5Ah battery) 1.04 kg Power gauge and LED light.
Anvil size 3/8" square drive The on board power gauge displays the remaining battery life, while a built
Anvil type Friction ring in LED light illuminates the work area.
Battery type Lithium-ion
Power gauge Yes 2-year warranty.
LED light Yes
Charge time (1.5Ah battery) 30 min
Warranty 2 years

Partner Products:
3/8“ Sockets
12V Li-Ion Batteries
Tool Bag
AUS. pub. 07/17 © Personal Protective Equipment

11 2503
