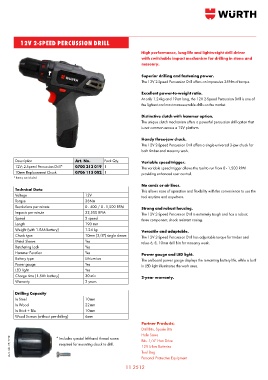

Page 895 - Wurth Total Catalogue

12V 2-SPEED PERCUSSION DRILL

High performance, long life and lightweight drill driver
with switchable impact mechanism for drilling in stone and
masonry.

Superior drilling and fastening power.
The 12V 2-Speed Percussion Drill offers an impressive 38Nm of torque.

Excellent power-to-weight ratio.
At only 1.24kg and 19cm long, the 12V 2-Speed Percussion Drill is one of
the lightest and most manoeuvrable drills on the market.

Distinctive clutch with hammer option.
The unique clutch mechanism offers a powerful percussion drill option that
is not common across a 12V platform.

Handy three-jaw chuck.
The 12V 2-Speed Percussion Drill offers a single universal 3-jaw chuck for
both timber and masonry work.

Description Art. No. Pack Qty. Variable speed trigger.
12V; 2-Speed Percussion Drill* 0700 213 019 1 The variable speed trigger allows the tool to run from 0 - 1,500 RPM
10mm Replacement Chuck 0706 113 002 1 providing enhanced user control.
* Battery not included.
No cords or air lines.
Technical Data This allows ease of operation and flexibility with the convenience to use the
Voltage 12V tool anytime and anywhere.
Torque 38Nm
Revolutions per minute 0 - 400 / 0 - 1,500 RPM Strong and robust housing.
Impacts per minute 22,500 BPM The 12V 2-Speed Percussion Drill is extremely tough and has a robust,
Speed 2 speed three component, shock resistant casing.
Length 190 mm
Weight (with 1.5Ah battery) 1.24 kg Versatile and adaptable.
Chuck type 10mm (3/8") single sleeve The 12V 2-Speed Percussion Drill has adjustable torque for timber and
Metal Sleeve Yes takes 6, 8, 10mm drill bits for masonry work.
Ratcheting Lock Yes
Hammer Function Yes Power gauge and LED light.
Battery type Lithium-ion The on board power gauge displays the remaining battery life, while a built
Power gauge Yes in LED light illuminates the work area.
LED light Yes
Charge time (1.5Ah battery) 30 min 2-year warranty.
Warranty 2 years

Drilling Capacity
In Steel 10mm
In Wood 22mm
In Brick + Tile 10mm
Wood Screws (without pre-drilling) 6mm
Partner Products:
Drill Bits, Spade Bits
Hole Saws
AUS. pub. 09/17 © required for mounting chuck to drill. 12V Li-Ion Batteries
* Includes special left-hand thread screw
Bits -1/4“ Hex Drive
Tool Bag
Personal Protective Equipment
