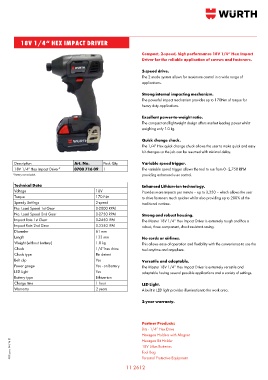

18V 1/4“ HEX IMPACT DRIVER

Compact, 2-speed, high performance 18V 1/4“ Hex Impact
Driver for the reliable application of screws and fasteners.

2-speed drive.
The 2 mode system allows for maximum control in a wide range of
applications.

Strong internal impacting mechanism.
The powerful impact mechanism provides up to 170Nm of torque for
heavy duty applications.

Excellent power-to-weight ratio.
The compact and lightweight design offers market leading power whilst
weighing only 1.0 kg.

Quick change chuck.
The 1/4“ Hex quick change chuck allows the user to make quick and easy
bit changes so the job can be resumed with minimal delay.

Description Art. No. Pack Qty. Variable speed trigger.
18V 1/4" Hex Impact Driver* 0700 716 09 1 The variable speed trigger allows the tool to run from 0 - 2,750 RPM
*Battery not included. providing enhanced user control.
Technical Data Enhanced Lithium-ion technology.
Voltage 18V Provides more impacts per minute – up to 3,350 – which allows the user
Torque 170 Nm to drive fasteners much quicker whilst also providing up to 200% of the
Speedy Settings 2-speed traditional runtime.
No. Load Speed 1st Gear 0-2000 RPM
No. Load Speed 2nd Gear 0-2750 RPM Strong and robust housing.
Impact Rate 1st Gear 0-2450 IPM The Master 18V 1/4“ Hex Impact Driver is extremely tough and has a
Impact Rate 2nd Gear 0-3350 IPM robust, three component, shock resistant casing.
Diameter 61 mm
Length 133 mm No cords or airlines.
Weight (without battery) 1.0 kg This allows ease of operation and flexibility with the convenience to use the
Chuck 1/4" hex drive tool anytime and anywhere.
Chuck type Pin detent
Belt clip Yes Versatile and adaptable.
Power gauge Yes - on battery The Master 18V 1/4“ Hex Impact Driver is extremely versatile and
LED Light Yes adaptable having several possible applications and a variety of settings.
Battery type Lithium-ion
Charge time 1 hour LED Light.
Warranty 2 years A built in LED light provides illumination to the work area.

2-year warranty.

Partner Products:
Bits - 1/4“ Hex Drive
Hexagon Holders with Magnet
Hexagon Bit Holder
AUS. pub. 04/16 © 18V Li-Ion Batteries
Tool Bag
Personal Protective Equipment
