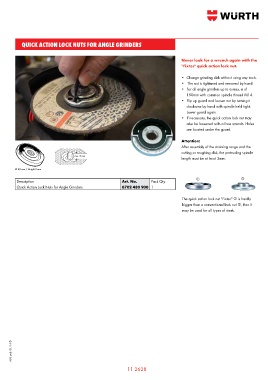

Page 904 - Wurth Total Catalogue

QUICK ACTION LOCK NUTS FOR ANGLE GRINDERS

Never look for a wrench again with the
"Fixtec" quick action lock nut.

• Change grinding disk without using any tools.
• The nut is tightened and removed by hand
• For all angle grinders up to a max. ø of
150mm with common spindle thread M14.
• Flip up guard and loosen nut by turning it
clockwise by hand with spindle held tight.
Lower guard again.
• If necessary, the quick action lock nut may
also be loosened with a face wrench. Holes
are located under the guard.

Attention:
After assembly of the straining range and the
cutting or roughing disk, the protruding spindle
min. 3 mm
length must be at least 3mm.
Ø 49 mm / Height 9 mm

Description Art. No. Pack Qty.  
Quick Action Lock Nuts for Angle Grinders 0702 480 900 1

The quick action lock nut "Fixtec"  is hardly
bigger than a conventional lock nut , thus it
may be used for all types of work.
