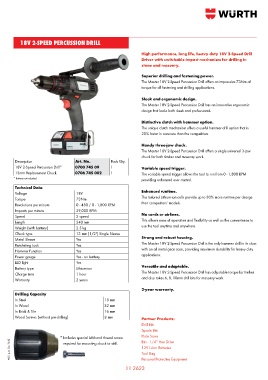

Page 901 - Wurth Total Catalogue

18V 2-SPEED PERCUSSION DRILL

High performance, long life, heavy duty 18V 2-Speed Drill
Driver with switchable impact mechanism for drilling in
stone and masonry.

Superior drilling and fastening power.
The Master 18V 2-Speed Percussion Drill offers an impressive 73Nm of
torque for all fastening and drilling applications.

Sleek and ergonomic design.
The Master 18V 2-Speed Percussion Drill has an innovative ergonomic
design that looks both sleek and professional.

Distinctive clutch with hammer option.
The unique clutch mechanism offers a useful hammer-drill option that is
20% faster in concrete than the competition.

Handy three-jaw chuck.
The Master 18V 2-Speed Percussion Drill offers a single universal 3-jaw
chuck for both timber and masonry work.
Description Art. No. Pack Qty.
18V 2-Speed Percussion Drill* 0700 745 09 1 Variable speed trigger.
13mm Replacement Chuck 0706 745 002 1 The variable speed trigger allows the tool to run from 0 - 1,800 RPM
* Battery not included. providing enhanced user control.
Technical Data
Voltage 18V Enhanced runtime.
Torque 73Nm The tailored Lithium-ion cells provide up to 30% more runtime per charge
Revolutions per minute 0 - 450 / 0 - 1,800 RPM than competitors‘ models.
Impacts per minute 29,000 BPM
Speed 2 speed No cords or airlines.
Length 240 mm This allows ease of operation and flexibility as well as the convenience to
Weight (with battery) 2.5 kg use the tool anytime and anywhere.
Chuck type 13 mm (1/2") Single Sleeve
Metal Sleeve Yes Strong and robust housing.
Ratcheting Lock Yes The Master 18V 2-Speed Percussion Drill is the only hammer drill in its class
Hammer Function Yes with an all metal gear case, providing maximum durability for heavy duty
Power gauge Yes - on battery applications.
LED light Yes
Battery type Lithium-ion Versatile and adaptable.
Charge time 1 hour The Master 18V 2-Speed Percussion Drill has adjustable torque for timber
Warranty 2 years and also takes 6, 8, 10mm drill bits for masonry work.
2-year warranty.
Drilling Capacity
In Steel 13 mm
In Wood 32 mm
In Brick & Tile 16 mm
Wood Screws (without pre-drilling) 8 mm Partner Products:
Drill Bits
Spade Bits
* Includes special left-hand thread screw Hole Saws
Bits - 1/4“ Hex Drive
AUS. pub. 04/16 © 12V Li-Ion Batteries
required for mounting chuck to drill.
Tool Bag
Personal Protective Equipment
11 2623
