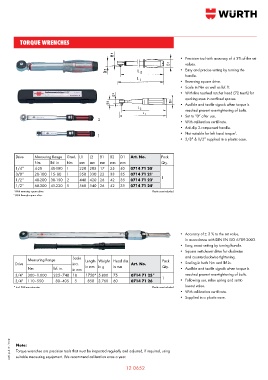

Page 942 - Wurth Total Catalogue

TORQUE WRENCHES

• Precision tool with accuracy of ± 3% of the set
values.
• Easy and precise setting by turning the
handle.
• Reversing square drive.
• Scale in Nm as well as lbf. ft.
• With fine toothed ratchet head (72 teeth) for
working even in confined spaces.
• Audible and tactile signals when torque is
reached prevent over-tightening of bolts.
• Set to “0“ after use.
2
• With calibration certificate.
• Anti-slip 2-component handle.
• Not suitable for left hand torque .
1
1
• 3/8” & 1/2” supplied in a plastic case.

Drive Measuring Range Grad. L1 L2 B1 B2 D1 Art. No. Pack
Nm lbf. in Nm mm mm mm mm mm Qty.
1/4” 4-20 40-180 1 220 205 17 25 40 0714 71 20�
3/8” 20-100 15- 80 1 350 330 22 33 35 0714 71 21�
1/2” 40-200 30-150 2 440 420 26 42 35 0714 71 23� 1
1/2” 60-300 45-220 5 560 540 26 42 35 0714 71 24�
� With reversing square drive. Plastic case included.
� With through square drive.

• Accuracy of ± 3 % to the set value,
in accordance with DIN EN ISO 6789:2003.
• Easy, exact setting by turning handle.
• Square switchover drive for clockwise
Measuring Range Scale Length Weight Head dia. Pack and counterclockwise tightening.
Drive incr. Art. No. • Scaling in both Nm and lbf.in.
Nm lbf. in. in mm in mm in g in mm Qty. • Audible and tactile signals when torque is
3/4” 300–1.000 225–740 10 1750* 5.800 75 0714 71 25* 1 reached prevent over-tightening of bolts.
3/4” 110–550 80–405 5 850 3.760 60 0714 71 26 • Following use, relax spring and set to
lowest value.
* Incl. 500 mm extension Plastic case included.
• With calibration certificate.
• Supplied in a plastic case.

AUS. pub. 01/16 © Note:
Torque wrenches are precision tools that must be inspected regularly and adjusted, if required, using
suitable measuring equipment. We recommend calibration once a year.
