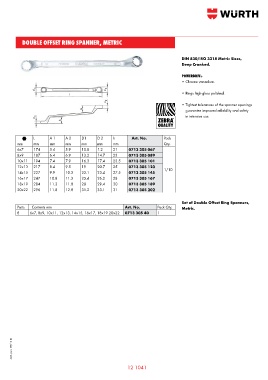

Page 947 - Wurth Total Catalogue

DOUBLE OFFSET RING SPANNER, METRIC

DIN 830/ISO 3318 Metric Sizes,
Deep Cranked.

POWERDRIV®
• Chrome vanadium.

• Rings high-gloss polished.

• Tightest tolerances of the spanner openings
guarantee improved reliability and safety
in intensive use.

L A 1 A 2 D1 D 2 h Art. No. Pack
mm mm mm mm mm mm mm Qty.
6x7 174 5.4 5.9 10.8 1.2 21 0713 305 067
8x9 187 6.4 6.9 13.2 14.7 23 0713 305 089
10x11 194 7.4 7.9 16.3 17.4 23.5 0713 305 101
12x13 217 8.4 9.5 19 20.7 25 0713 305 123
14x15 227 9.9 10.3 22.1 23.4 27.5 0713 305 145 1/10
16x17 247 10.8 11.3 25.4 26.2 28 0713 305 167
18x19 284 11.3 11.8 28 29.4 30 0713 305 189
20x22 296 11.8 12.8 31.2 33.1 31 0713 305 202

Set of Double Offset Ring Spanners,
Parts Contents mm Art. No. Pack Qty. Metric.
8 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19 20x22 0713 305 40 1
