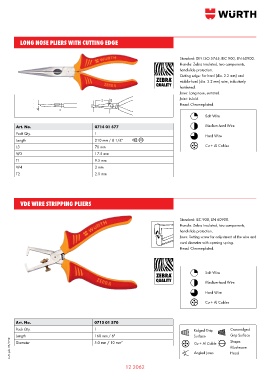

Page 998 - Wurth Total Catalogue

LONG NOSE PLIERS WITH CUTTING EDGE

Standard: DIN ISO 5745, IEC 900, EN 60900.
Handle: Zebra insulated, two components,
hand-slide protection.
Cutting edge: For hard (dia. 2.2 mm) and
middle-hard (dia. 3.2 mm) wire, inductively
hardened.
Jaws: Long nose, serrated.
Joint: In-laid.
Head: Chrome-plated.

Soft Wire

Art. No. 0714 01 577 Medium-hard Wire
Pack Qty. 1
Hard Wire
Length 210 mm / 8 1/4"
L3 70 mm Cu + Al Cables
W3 17.5 mm
T1 9.5 mm
W4 3 mm
T2 2.5 mm

VDE WIRE STRIPPING PLIERS

Standard: IEC 900, EN 60900.
Handle: Zebra insulated, two components,
hand-slide protection.
Jaws: Setting screw for adjustment of the wire and
cord diameter with opening spring.
Head: Chrome-plated.

Soft Wire
Medium-hard Wire

Hard Wire

Cu + Al Cables

Art. No. 0715 01 570
Pack Qty. 1 Ridged Grip Cross-ridged
Length 160 mm / 6" 2 Surface Grip Surface
AUS. pub. 08/17 © Diameter 5.0 mm / 10 mm Cu + Al Cable Mushroom
Shape:
Angled Jaws
Head

12 2062
