EG - 30 Engine section – Engine (Cummins ISF3.8)

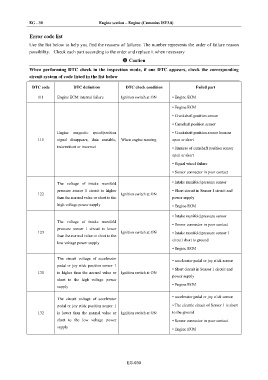

Error code list

Use the list below to help you find the reasons of failures. The number represents the order of failure reason
possibility. Check each part according to the order and replace it when necessary
Caution
When performing DTC check in the inspection mode, if one DTC appears, check the corresponding
circuit system of code listed in the list below

DTC code DTC definition DTC check condition Failed part

111 Engine ECM internal failure Ignition switch at ON • Engine ECM

• Engine ECM

• Crankshaft position sensor
• Camshaft position sensor
Engine magnetic speed/position • Crankshaft position sensor harness
115 signal disappears, data unstable, When engine running open or short
intermittent or incorrect • Harness of camshaft position sensor
open or short

• Signal wheel failure
• Sensor connector in poor contact

The voltage of intake manifold • Intake manifold pressure sensor
pressure sensor 1 circuit is higher • Short circuit in Sensor 1 circuit and
122 Ignition switch at ON
than the normal value or short to the power supply
high voltage power supply • Engine ECM

• Intake manifold pressure sensor
The voltage of intake manifold
• Sensor connector in poor contact
pressure sensor 1 circuit is lower
123 Ignition switch at ON • Intake manifold pressure sensor 1
than the normal value or short to the
circuit short to ground
low voltage power supply
• Engine ECM

The circuit voltage of accelerator
• accelerator pedal or joy stick sensor
pedal or joy stick position sensor 1
• Short circuit in Sensor 1 circuit and
131 is higher than the normal value or Ignition switch at ON
power supply
short to the high voltage power
• Engine ECM
supply

• accelerator pedal or joy stick sensor
The circuit voltage of accelerator
pedal or joy stick position sensor 1 • The electric circuit of Sensor 1 is short
132 is lower than the normal value or Ignition switch at ON to the ground
short to the low voltage power • Sensor connector in poor contact
supply
• Engine ECM

EG-030
