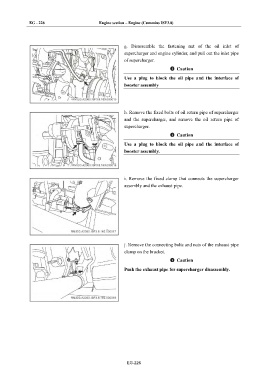

EG - 226                       Engine section – Engine (Cummins ISF3.8)


                                                        g.  Disassemble  the  fastening  nut  of  the  oil  inlet  of
                                                        supercharger and engine cylinder, and pull out the inlet pipe
                                                        of supercharger.
                                                                                Caution

                                                        Use  a  plug  to  block  the  oil  pipe  and  the  interface  of
                                                        booster assembly




                                                        h. Remove the fixed bolts of oil return pipe of supercharger
                                                        and  the  supercharger,  and  remove  the  oil  return  pipe  of
                                                        supercharger.
                                                                                Caution

                                                        Use  a  plug  to  block  the  oil  pipe  and  the  interface  of
                                                        booster assembly.




                                                        i.  Remove  the  fixed  clamp  that  connects  the  supercharger
                                                        assembly and the exhaust pipe.












                                                        j. Remove the connecting bolts and nuts of the exhaust pipe
                                                        clamp on the bracket.
                                                                                Caution

                                                        Push the exhaust pipe for supercharger disassembly.




















                                                         EG-226
