Page 746 - Foton Workshop Manual - Auman EST-M

EG - 230 Engine section – Engine (Cummins ISF3.8)

Exhaust pipe and muffler assembly

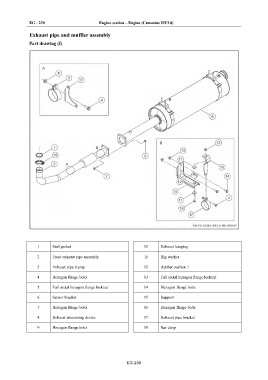

Part drawing (I)

1 Seal gasket 10 Exhaust hanging

2 Front exhaust pipe assembly 11 Big washer

3 Exhaust pipe clamp 12 Rubber cushion I
4 Hexagon flange bolts 13 Full metal hexagon flange locknut

5 Full metal hexagon flange locknut 14 Hexagon flange bolts

6 Sensor bracket 15 Support

7 Hexagon flange bolts 16 Hexagon flange bolts

8 Exhaust processing device 17 Exhaust pipe bracket
9 Hexagon flange bolts 18 Bar clasp

EG-230
