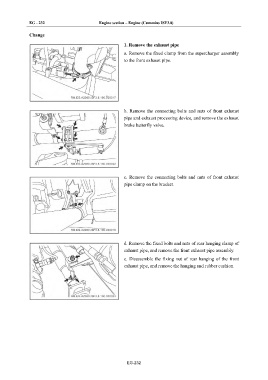

EG - 232 Engine section – Engine (Cummins ISF3.8)

Change

1. Remove the exhaust pipe
a. Remove the fixed clamp from the supercharger assembly
to the front exhaust pipe.

b. Remove the connecting bolts and nuts of front exhaust
pipe and exhaust processing device, and remove the exhaust
brake butterfly valve.

c. Remove the connecting bolts and nuts of front exhaust
pipe clamp on the bracket.

d. Remove the fixed bolts and nuts of rear hanging clamp of
exhaust pipe, and remove the front exhaust pipe assembly.
e. Disassemble the fixing nut of rear hanging of the front
exhaust pipe, and remove the hanging and rubber cushion.

EG-232
