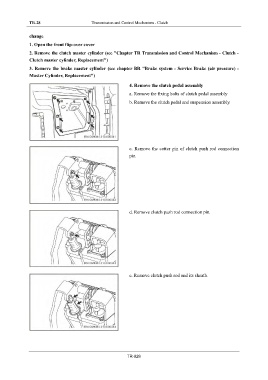

TR-28 Transmission and Control Mechanism - Clutch

change
1. Open the front flip-over cover

2. Remove the clutch master cylinder (see "Chapter TR Transmission and Control Mechanism - Clutch -
Clutch master cylinder, Replacement")
3. Remove the brake master cylinder (see chapter BR "Brake system - Service Brake (air pressure) -
Master Cylinder, Replacement")

4. Remove the clutch pedal assembly

a. Remove the fixing bolts of clutch pedal assembly
b. Remove the clutch pedal and suspension assembly.

c. Remove the cotter pin of clutch push rod connection
pin.

d. Remove clutch push rod connection pin.

e. Remove clutch push rod and its sheath.

TR-028
