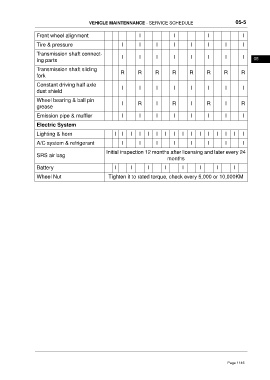

Page 1145 - Foton Workshop Manual - Tunland (AT)

VEHICLE MAINTENNANCE - SERVICE SCHEDULE 05-5

Front wheel alignment I I I I
Tire & pressure I I I I I I I I

Transmission shaft connect- I I I I I I I I
ing parts 05

Transmission shaft sliding R R R R R R R R
fork
Constant driving half axle I I I I I I I I
dust shield

Wheel bearing & ball pin I R I R I R I R
grease
Emission pipe & muffler I I I I I I I I

Electric System
Lighting & horn I I I I I I I I I I I I I I I I

A/C system & refrigerant I I I I I I I I
Initial inspection 12 months after licensing and later every 24
SRS air bag
months

Battery I I I I I I I I
Wheel Nut Tighten it to rated torque, check every 5,000 or 10,000KM

Page 1145
